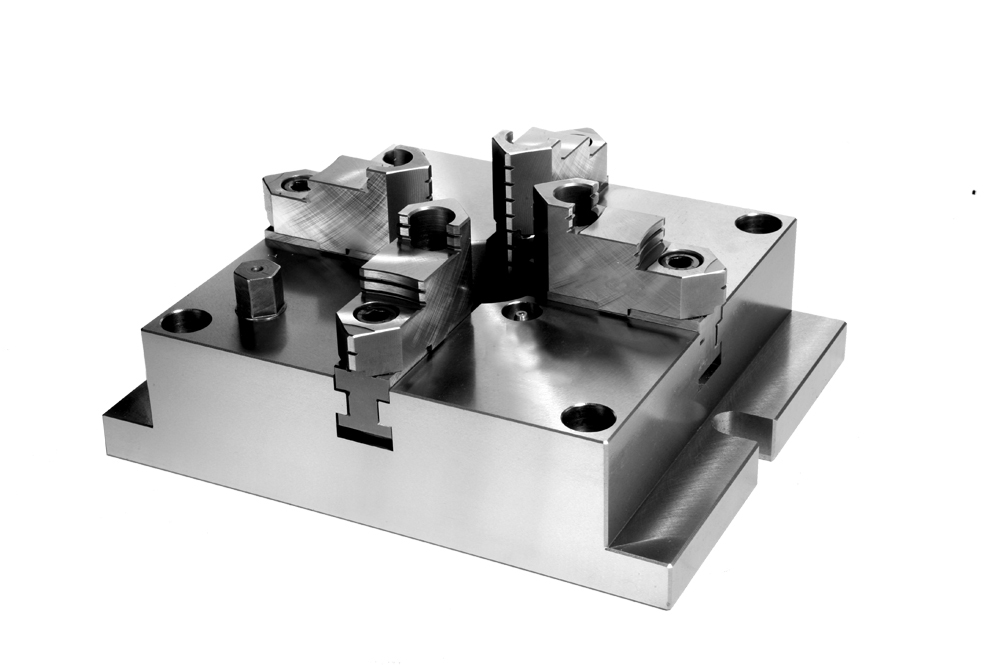

Stationary four-jaw lathe chuck, type 200
€1,061.50*
€1,263.18 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-SDF4-200
Customs tariff number
8466 2091
European Article Number
4049794053935
Weight
21,4 kg
Stock:
2
Related links:
Request Item
Product information "Stationary four-jaw lathe chuck, type 200"
Four-jaw lathe chuck type 200, stationary
- clamping range: 5 - 162 mm
- safe gripping of work piece (precision: 0,03 mm)
- large work pieces can be held thanks to low profile body
- able to grip square work pieces by using this chuck
as a two-way jaw unit
- with dirt cover
- with thru bore
- handle is set on the face and does not interfere
with the table
- several chucks may be combined
| Make: | Zentra |
|---|---|
| Type: | 4-jaw lathe chucks |

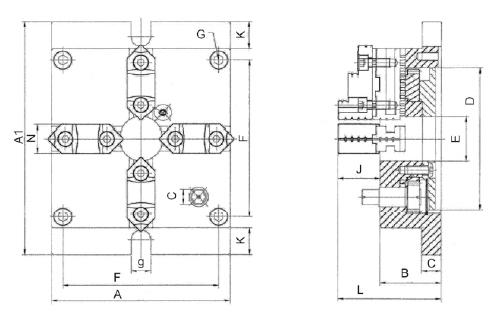

Technical Data
| Typ / Type |
A mm |
A1 mm |
F mm |
g mm |
K mm |
N mm |
D mm |
| 165 | 165 | 215 | 144 | 18 | 25 | 26 | 130 |
| 200 | 200 | 250 | 174 | 18 | 25 | 28 | 160 |
| 250 | 250 | 310 | 218 | 18 | 30 | 32 | 200 |
| 310 | 310 | 380 | 274 | 22 | 35 | 40 | 260 |
| E mm |
C mm |
B mm |
L mm |
J mm |
G mm |
Spannbereich / Clamping range mm |
kg |
| 40 | 18 | 57 | 96 | 40 | 4-M10 | 4 - 128 | 14 |
| 55 | 20 | 65 | 108 | 43 | 4-M12 | 5 - 162 | 22 |
| 70 | 22 | 72 | 122 | 52 | 4-M14 | 6 - 200 | 36 |
| 100 | 25 | 85 | 141 | 59 | 4-M16 | 10 - 265 | 62 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
