Stationary three-jaw lathe chuck, type 305
€1,873.22*
€2,229.13 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-SDF3-305
Customs tariff number
8466 2091
European Article Number
4049794053911
Weight
47,8 kg
Stock:
3
Related links:
Request Item
Product information "Stationary three-jaw lathe chuck, type 305"

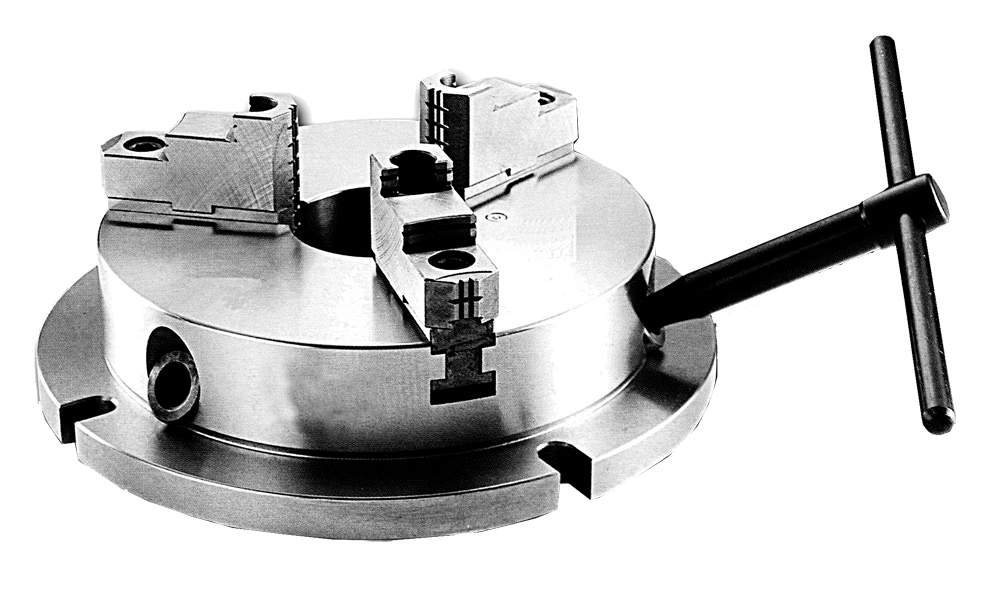

Stationary three-jaw lathe chuck, extra thin, type 305
- clamping range: 15 - 305 mm
- 30° angle between wrench and base
for easy of handling
- extra thin chuck design increase machining space
- may be used with hard or soft jaws
- incl. wrench
| Make: | Zentra |
|---|---|
| Type: | 3-jaw lathe chucks |

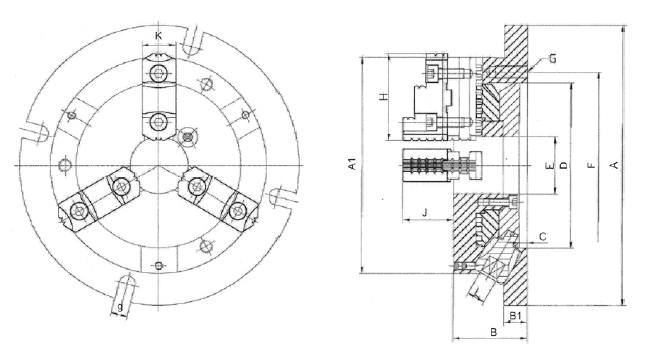

Technical Data
| Typ / Type |
A mm |
A1 mm |
B mm |
B1 mm |
D mm |
F mm |
E mm |
| 170 | 220 | 170 | 58 | 18 | 130 | 147 | 45 |
| 210 | 270 | 210 | 65 | 20 | 155 | 172 | 60 |
| 255 | 315 | 255 | 73 | 20 | 190 | 210 | 80 |
| 305 | 370 | 305 | 80 | 22 | 250 | 285 | 105 |
| C mm |
G mm |
H mm |
K mm |
J mm |
L mm |
g mm |
Spannbereich / Clamping range mm |
| 6 | 3-M10 | 68 | 26 | 40 | 10 | 13 | 8 - 160 |
| 6 | 3-M10 | 82 | 28 | 43 | 11 | 13 | 11 - 200 |
| 6 | 3-M12 | 93 | 32 | 52 | 12 | 16 | 12 - 250 |
| 5 | 3-M12 | 118 | 40 | 59 | 14 | 18 | 15 - 300 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
