Swivel base Bison type 9454-200
Product number:
329454050100
Customs tariff number
84663000
European Article Number
Weight
21,3 kg
Stock:
0
Related links:
Request Item

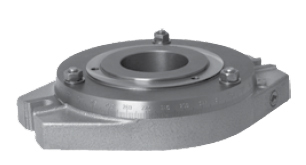

Product information "Swivel base Bison type 9454-200"
Swivel base Bison type 9454
- for chuck size 200 mm
- for front mounting
- incl. slot nuts and clamping bolts

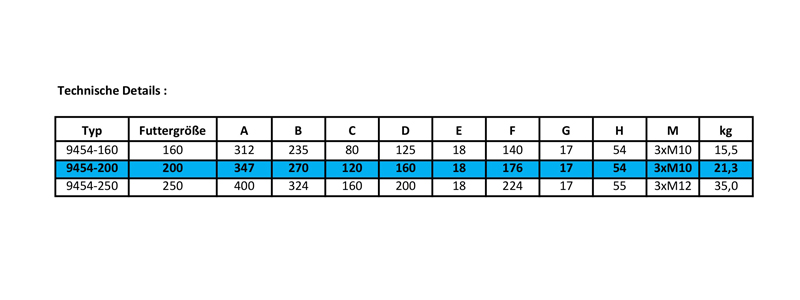

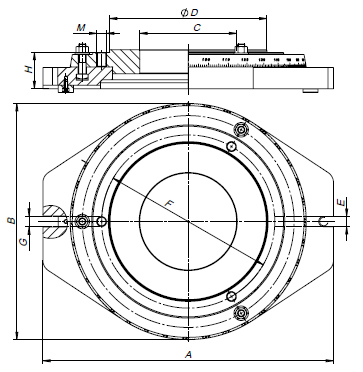

Technical Data
| Typ / Type |
Futtergröße / Chuck size |
A | B | C | D | E | F | G | H | M | kg |
| 9454-160 | 160 | 312 | 235 | 80 | 125 | 18 | 140 | 17 | 54 | 3xM10 | 15,5 |
| 9454-200 | 200 | 347 | 270 | 120 | 160 | 18 | 176 | 17 | 54 | 3xM10 | 21,3 |
| 9454-250 | 250 | 400 | 324 | 160 | 200 | 18 | 224 | 17 | 55 | 3xM12 | 35,0 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
