Parallels in wooden case 120/8 mm
€110.81*
€131.86 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-MLRD-120/8
Customs tariff number
9017 3000
European Article Number
4049794657270
Weight
3,9 kg
Stock:
10
Related links:
Request Item
Product information "Parallels in wooden case 120/8 mm"

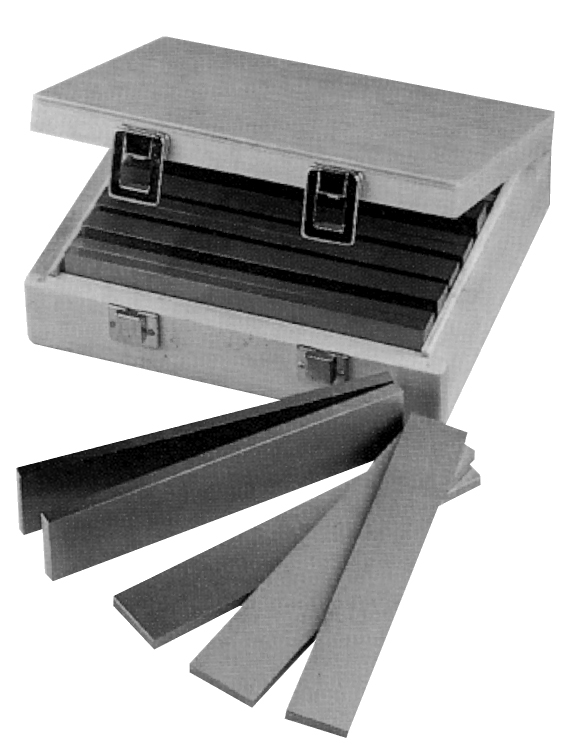

Parallels in wooden case
Type MLRD
- Material: Alloyed tool steel 53 - 57 HRC
- Tolerance:
A = 0,01 mm
B = 3 - 6 mm 0,005 mm
B = 6 - 10 mm 0,006 mm
B = 10 - 18 mm 0,008 mm
B = 18 - 30 mm 0,009 mm
B = 30 - 50 mm 0,01 mm
- in wooden case
Size (L x A): 120 x 8 mm

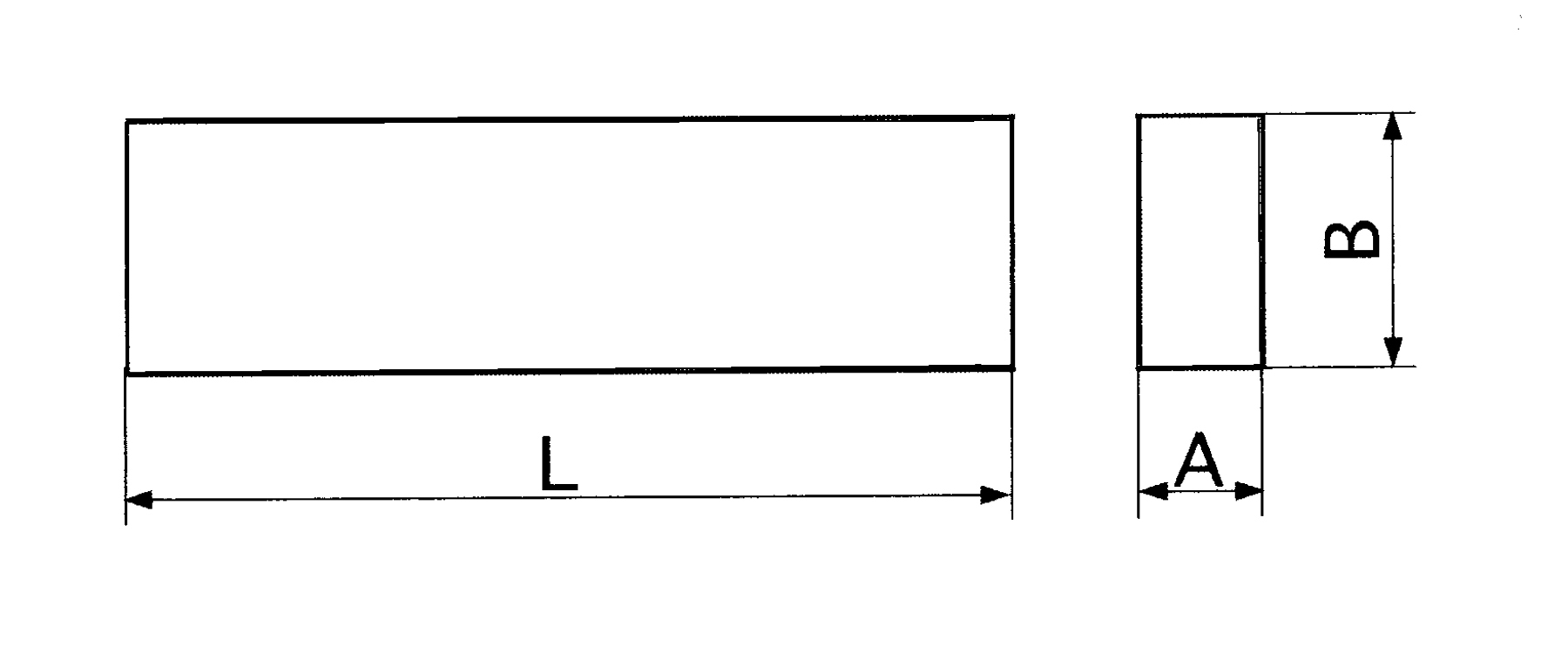

Technical Data
| L mm |
A mm |
B mm |
Menge / Quantity |
Paare / Pairs |
| 100 | 4 | 10 / 14 / 18 / 22 / 26 / 30 / 34 / 38 / 42 | je 2 / 2 each | 9 |
| 120 | 8 | 12 / 17 / 22 / 25 / 28 / 32 / 36 / 38 | je 2 / 2 each | 8 |
| 160 | 4 | 10 / 14 / 18 / 22 / 26 / 30 / 34 / 38 / 42 | je 2 / 2 each | 9 |
| 160 | 8 | 12 / 17 / 22 / 25 / 28 / 32 / 36 / 38 | je 2 / 2 each | 8 |
| 200 | 8 | 17 / 22 / 26 / 28 / 32 / 36 / 38 / 42 | je 2 / 2 each | 8 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
