Tee nuts for vices 18/14 mm
€50.11*
€59.63 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
14-18-14
Customs tariff number
8466 2098
European Article Number
4049794009505
Weight
0,05 kg
Stock:
2
Related links:
Request Item
Product information "Tee nuts for vices 18/14 mm"

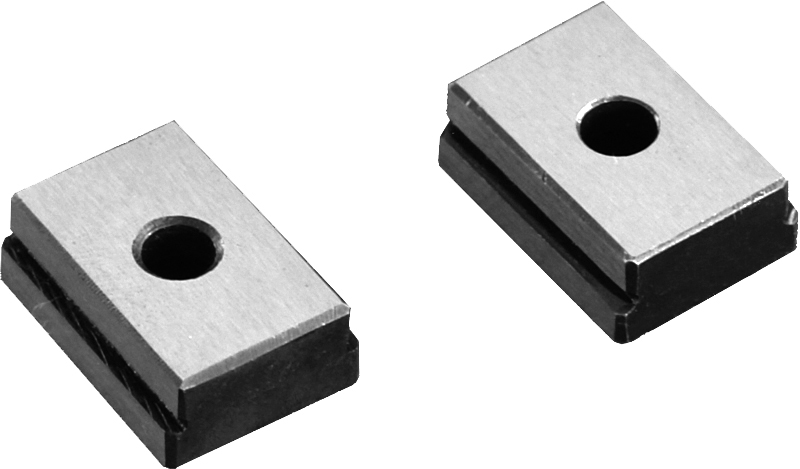

Tee nuts for vice
- price per set
A: 18 mm
B: 14 mm

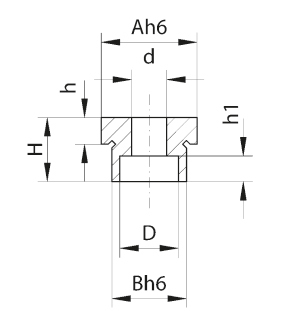

Technical Data
| A mm |
B mm |
L mm |
H mm |
h mm |
h1 mm |
D mm |
d mm |
| 18 | 12 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 18 | 14 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 18 | 16 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 18 | 18 | 25 | 10 | 0 | 5,7 | 10 | 6 |
| 18 | 20 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 18 | 22 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 20 | 12 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 20 | 14 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 20 | 16 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 20 | 18 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 20 | 20 | 25 | 10 | 0 | 5,7 | 10 | 6 |
| 20 | 22 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 22 | 14 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 22 | 16 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 22 | 18 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 22 | 20 | 25 | 10 | 4,8 | 5,7 | 10 | 6 |
| 22 | 22 | 25 | 10 | 0 | 5,7 | 10 | 6 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
