€1,625.83 *
€1,934.74 incl. VAT
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: ZE-ZSM2-130
- Customs tariff number: 8466 2098
- European article number: 4049794682548
- Weight: 31,5 kg
- In stock: 1
Self-centering vice ZSM2-130
- for 4/5-axes machining - repeatability: 0,01 mm - with... more
Product information "Self-centering vice type ZSM2-130"

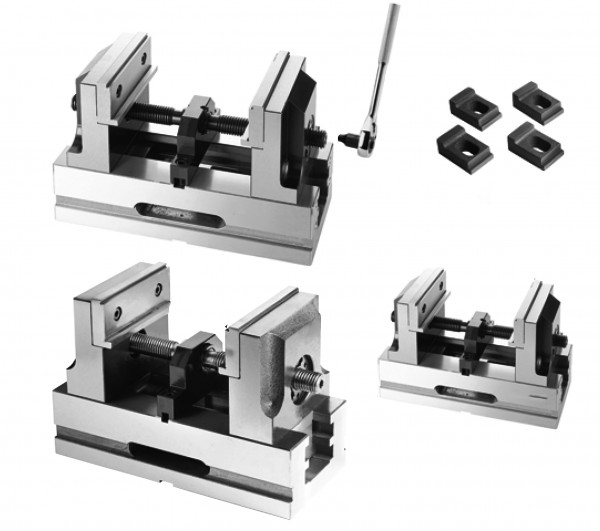

Self-centering vice ZSM2-130
- for 4/5-axes machining
- repeatability: 0,01 mm
- with pull-down mechanism
- incl. 4 clamping brackets and key
Type: | Self-centering vices |
Jaw width: | 130 mm |
Type: | mechanically |
Make: | Zentra |
Related links to "Self-centering vice type ZSM2-130"

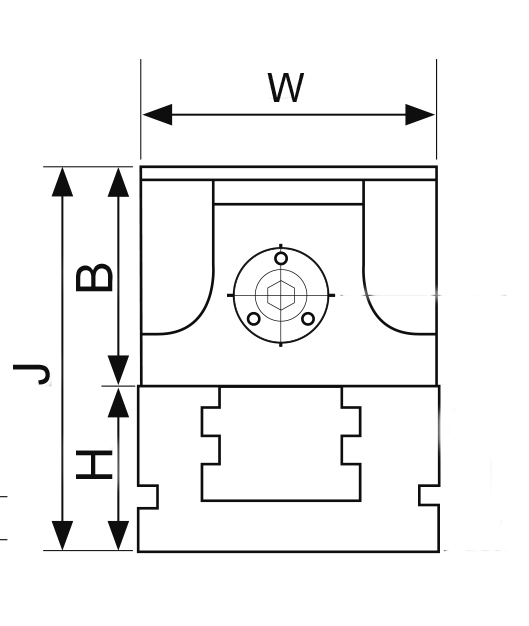

W mm
J mm

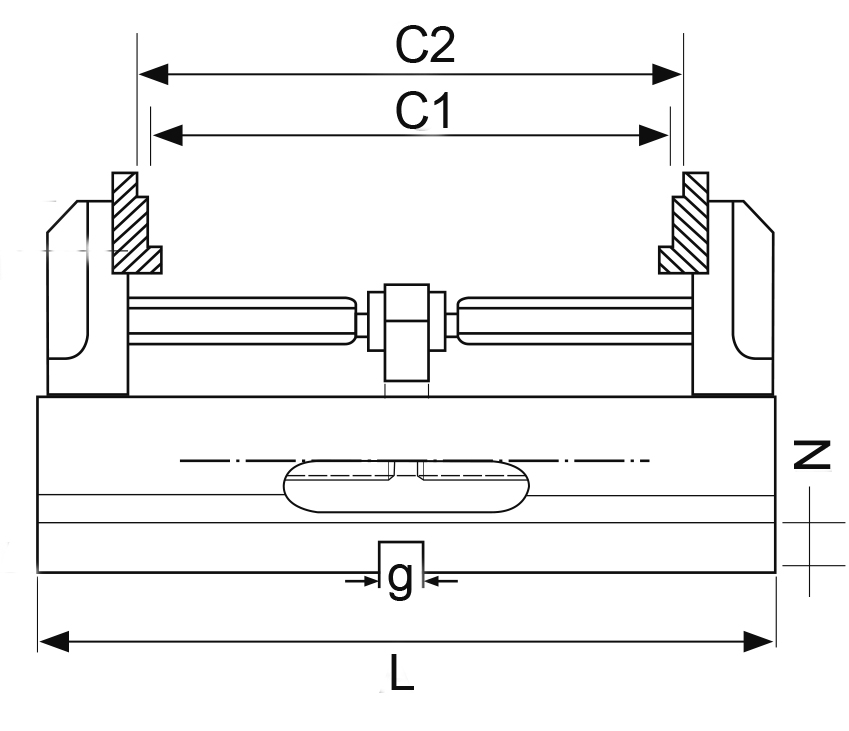

C1 Spannweite / Clamping range
C2 Spannweite / Clamping... more
W mm |
J mm |
C1 Spannweite / Clamping range |
C2 Spannweite / Clamping range |
H mm |
B mm |
131 | 200 | 17 - 180 | 25 - 188 | 80 | 120 |
N mm |
g mm |
L mm |
Spannkraft / Clamping force daN |
Anzugsmoment / Torque Nm |
kg |
21 | 16 | 290 | 1470 | 25 | 31,5 |
Inkl. 4 Spannpratzen und Schlüssel / Incl. 4 clamping brackets and key | |||||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
