Tool maker vice TMV-A125, with quick adjustment

Preview: Tool maker vice TMV-A125, with quick adjustment Preview: Drawing Tool maker vice TMV-A125, with quick adjustment

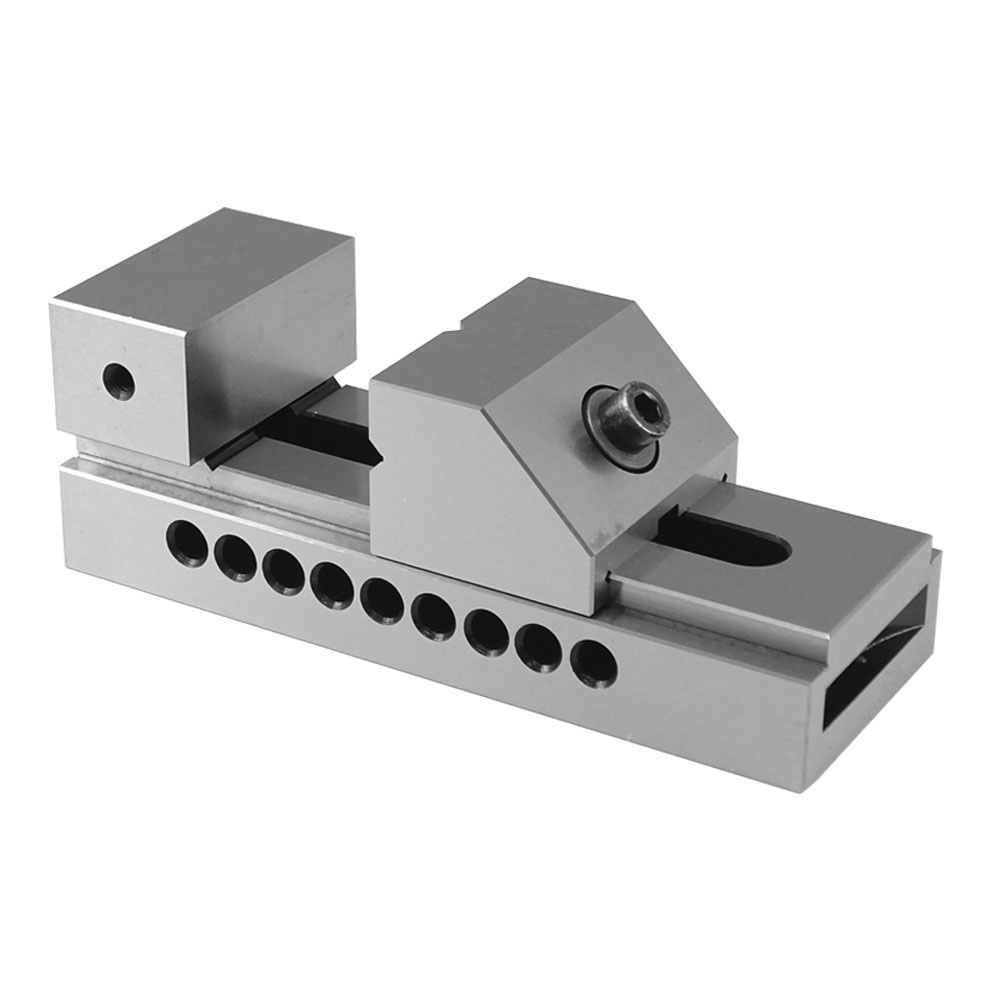

Tool maker vice TMV-A125, with quick adjustment

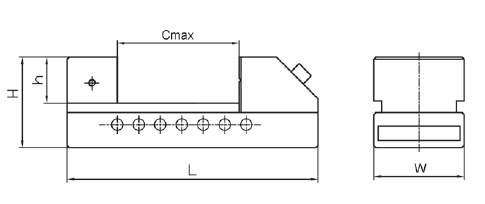

Drawing Tool maker vice TMV-A125, with quick adjustment

€259.06 *
€308.28 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-TMV-A125
  • Customs tariff number: 8466 2098
  • European article number: 4049794059289
  • Weight: 16 kg
  • In stock: 8
Description Technical data Evaluations 0
Description
Tool maker vice TMV-A125, with quick adjustment - made from heat treated alloy steel,... more
Close menu
Product information "Tool maker vice TMV-A125, with quick adjustment"

Tool maker vice TMV-A125, with quick adjustment

- made from heat treated alloy steel, subzero treatment
  for stress relief against distortion, hardened 58 HRC
  and finished by grinding
- suitable for milling and grinding machines
- also suitable as reference for inspection
- parallelism: 0,005 mm / 100 mm
- squareness: 0,005 mm / 100 mm

Type: Tool maker vices
Jaw width: 125 mm
Type: mechanically, with quick adjustment
Clamping capacity: 160 mm
Make: Zentra
Related links to "Tool maker vice TMV-A125, with quick adjustment"
Technical data
Typ / Type W mm h mm Cmax mm L mm kg A50 50 25 65 140 2... more
Zurück
Typ /
Type		 W
mm		 h
mm		 Cmax
mm		 L
mm		 kg
A50 50 25 65 140 2
A63 63 32 85 175 3
A73 73 35 100 190 4
A100 10 45 125 245 10
A125 125 50 160 285 18
A150 150 50 200 330 21

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
