Round permanent magnetic chuck Ø 250 mm

Preview: Round permanent magnetic chuck Ø 250 mm Preview: Drawing 1 Round permanent magnetic chuck Ø 250 mm Preview: Drawing 2 Round permanent magnetic chuck Ø 250 mm
Round permanent magnetic chuck Ø 250 mm

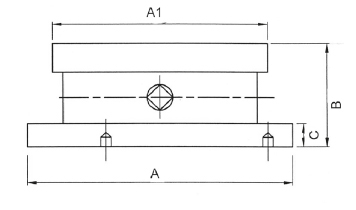

Drawing 1 Round permanent magnetic chuck Ø 250 mm
Drawing 2 Round permanent magnetic chuck Ø 250 mm

€872.50 *
€1,038.28 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-PMPRD18-250
  • Customs tariff number: 8466 3000
  • European article number: 4049794663974
  • Weight: 21 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Round permanent magnetic chuck 250 mm - for turning and grinding machines,   diving... more
Close menu
Product information "Round permanent magnetic chuck Ø 250 mm"

Round permanent magnetic chuck 250 mm

- for turning and grinding machines,
  diving heads and rotary tables
- generation of magnetic force by
  permanent magnetics
- on/off-operation by wrench
- holding force up to 100 N/cm²



Related links to "Round permanent magnetic chuck Ø 250 mm"
Technical data
A1 mm D mm C mm A mm P mm B mm kg 150 101 18 200 9 (2+7) 78... more
Zurück
A1
mm		 D
mm		 C
mm		 A
mm		 P
mm		 B
mm		 kg
150 101 18 200 9 (2+7) 78 9
200 137 18 200 9 (2+7) 78 13
250 191 18 250 9 (2+7) 78 20
300 227 18 305 9 (2+7) 78 31

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
