Control caliper 0 - 500 mm without points DIN 862

Preview: Control caliper 0 - 500 mm without points DIN 862 Preview: Technical drawing Control caliper 0 - 500 mm without points DIN 862
Control caliper 0 - 500 mm without points DIN 862

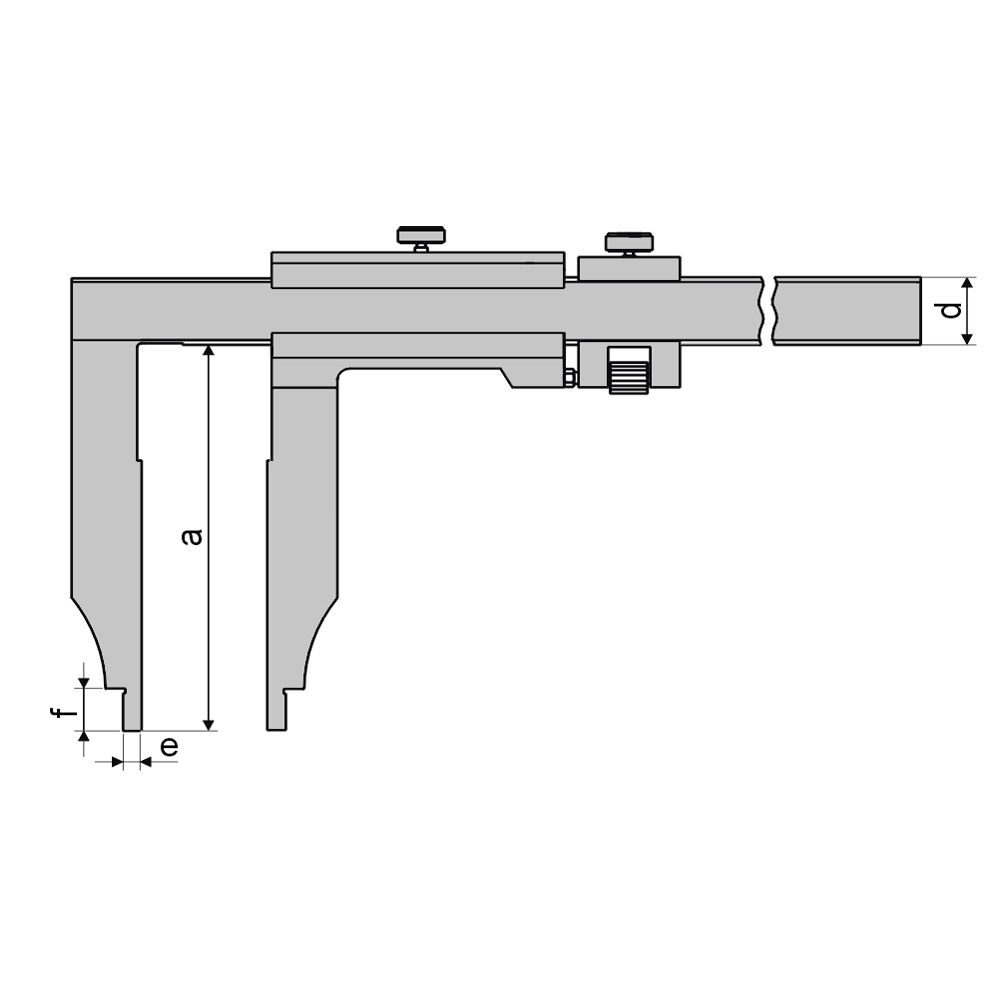

Technical drawing Control caliper 0 - 500 mm without points DIN 862

€161.00 *
€191.59 incl. VAT
€169.20 * (4.85% Saved)

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 201.325
  • Customs tariff number: 9017 3000
  • European article number: 4054469101491
  • Weight: 3 kg
  • In stock: 27
Description Technical data Product Safety Information Evaluations 0
Description
Precision control caliper 500 x 150 mm without points - made of stainless steel, hardened -... more
Close menu
Product information "Control caliper 0 - 500 mm without points DIN 862"

Precision control caliper 500 x 150 mm without points

- made of stainless steel, hardened
- satin chrome finished
- monoblock
- for outside, inside and step measuring
- with fine adjustment
- reading 0,05 mm / 1/128"
- accuracy DIN 862
- in case/box (for transport only)

Jaws 150 mm
Range 500 mm

Range: 0 - 500 mm
Type: analogue, made of stainless steel, hardened, with fine adjustment, without points
Nonius: 1/20 / 1/128"
Jaws: 150 mm
Accuracy: DIN 862
Related links to "Control caliper 0 - 500 mm without points DIN 862"
Technical data
Messbereich mm Range mm Schnabellänge a mm Jaws a mm d mm e mm... more
Zurück
Messbereich mm
Range mm		 Schnabellänge a mm
Jaws a mm		 d mm e mm f mm
500 / 20" 150 31 10 15
