Three point internal micrometer 10-12 mm analogue DIN 863

Preview: Three point internal micrometer 10-12 mm analogue DIN 863 Preview: Detail Three point internal micrometer 10-12 mm analogue DIN 863 Preview: Technical drawing Three point internal micrometer 10-12 mm analogue DIN 863
Three point internal micrometer 10-12 mm analogue DIN 863

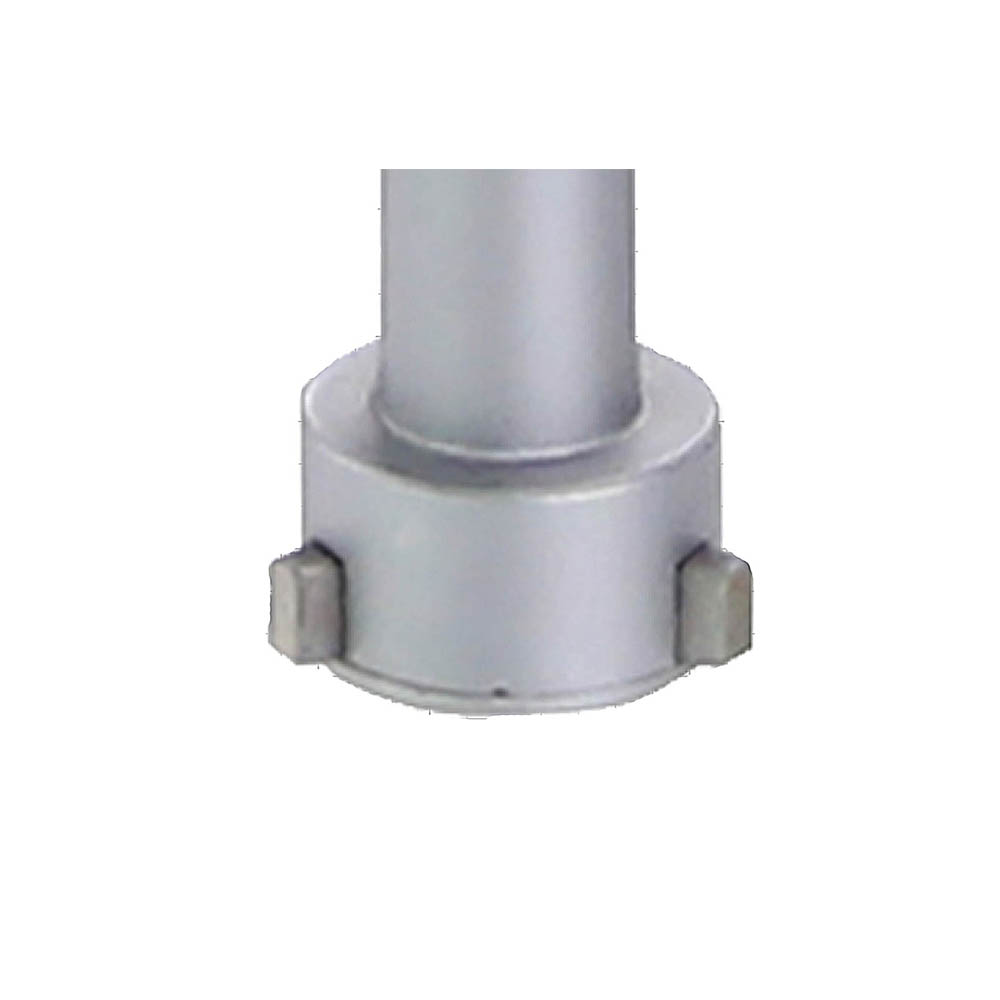

Detail Three point internal micrometer 10-12 mm analogue DIN 863

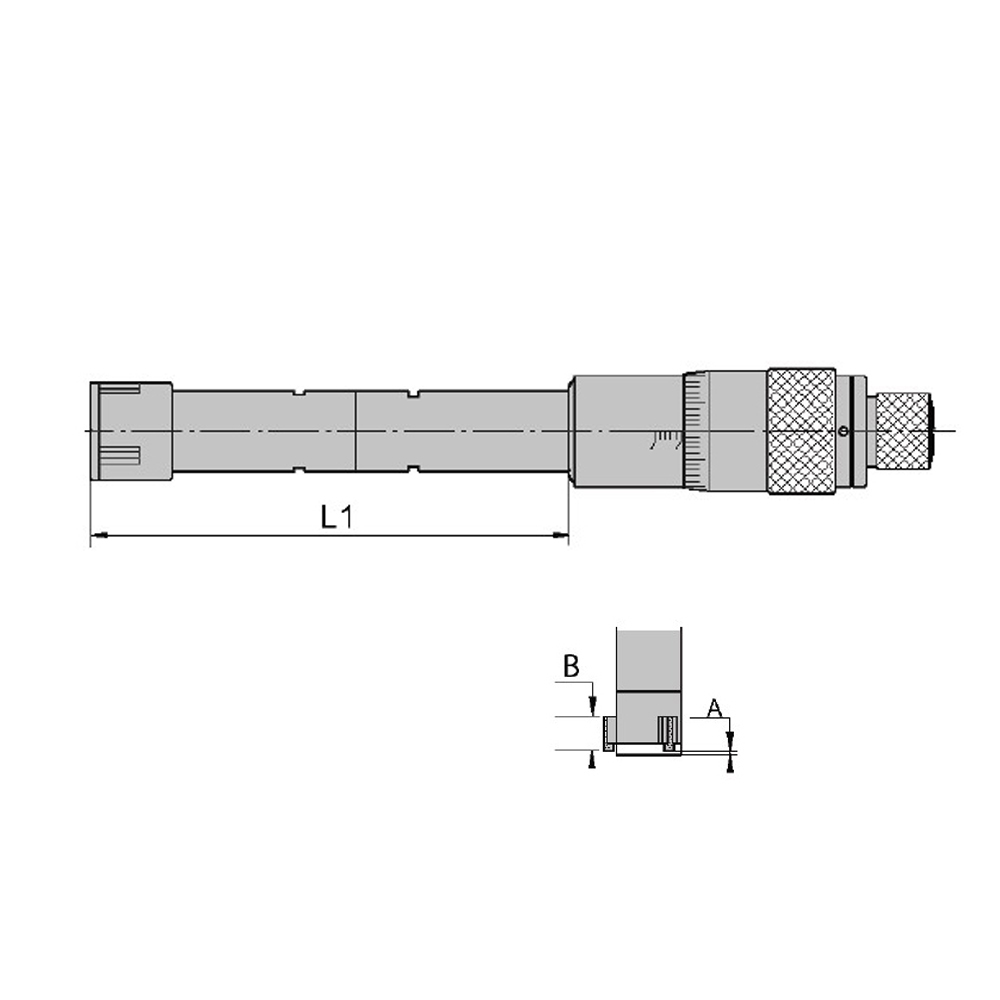

Technical drawing Three point internal micrometer 10-12 mm analogue DIN 863

€222.00 *
€264.18 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 312.132
  • Customs tariff number: 9017 3000
  • European article number: 4054469119458
  • Weight: 0,6 kg
  • In stock: 9
Description Technical data Product Safety Information Evaluations 0
Description
Three point internal micrometer 10-12 mm analogue - with setting gauge 10 mm and extension... more
Close menu
Product information "Three point internal micrometer 10-12 mm analogue DIN 863"

Three point internal micrometer 10-12 mm analogue

- with setting gauge 10 mm and extension 100 x Ø 5,7 mm
- for blind hole
- satin chrome finished
- DIN 863
- in case/box

Range 10 - 12 mm

Range: 10 - 12 mm
Type: analogue, with setting gauge and extension
usable for measuring of: blind hole
Reading: 0,001 mm
Accuracy: 0,004 mm
Related links to "Three point internal micrometer 10-12 mm analogue DIN 863"
Technical data
Messbereich mm Range mm Einstellring mm Standard mm... more
Zurück
Messbereich mm
Range mm		 Einstellring mm
Standard mm		 Verlängerung mm
Extension mm		 A mm L1 mm Ablesung mm
Reading mm		 Genauigkeit* µm
Accuracy* µm
10 - 12 10 100 x Ø 5,7 0,5 55 0,001 0,004
* bei vollanliegenden Messflächen / at full contact of the measuring faces
