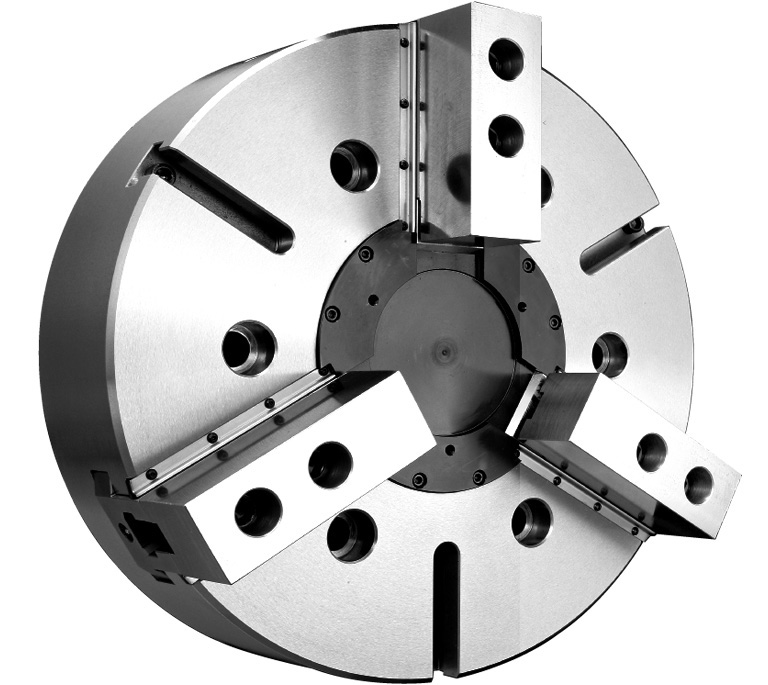

Three-jaw power chuck V-210A6 Ø 254 mm

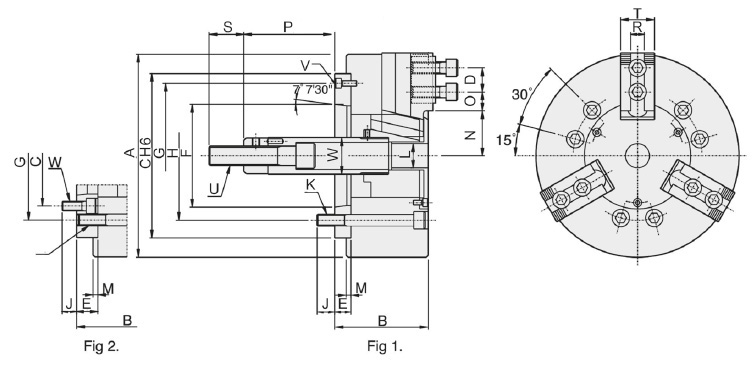

Drawing Three-jaw power chuck V-210A6 Ø 254 mm

€1,596.98 *

€1,900.41 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: T9-V-210A6
Customs tariff number: 8466 2091
European article number: 4049794002100
Weight: 45 kg
In stock: 2

Three-jaw power chuck V-210A6 DIN 55026, without bore - serration 1,5 x 60° - type V-210A6... more

Close menu

Product information "Three-jaw power chuck V-210A6 Ø 254 mm"

Three-jaw power chuck V-210A6 DIN 55026,
without bore - serration 1,5 x 60°

- type V-210A6 Ø 254 mm
- steel
- all sliding surfaces are hardened and ground
for high runout precision and long service life
- lubrication nipple in each base jaw
- incl. 1 set each of hardened base jaws and soft top jaws,
fixation screws

Type:	3-jaw lathe chucks
DIN:	55026
Ø :	254 mm
Bore:	without

Related links to "Three-jaw power chuck V-210A6 Ø 254 mm"

Typ / Type Fig Backenhub / Jaw stroke mm Zugrohrhub / Plunger stroke mm Max.... more

Zurück

Typ / Type	Fig	Backenhub / Jaw stroke mm	Zugrohrhub / Plunger stroke mm	Max. Betätigungskraft / Max. pull force (kN)	Max. Spannkraft / Max. gripping force (kN)	Max. Betätigungsdruck / Max. operating pessure (kN)
V-210A6	2	8,8	25	29	108	28,6

Trägheitsmoment / Moment of inertia (kgf-m2)		Passende harte Aufsatzbacken / Matching hard jaws	Passende weiche Aufsatzbacken / Matching soft jaws	Passender Zylinder / Matching cylinder	Max. Drehzahl / Max. speed (rpm)	kg
0,3		HJ10	HC10	MH125	4010	37,15

Typ / Type	A mm	B mm	H mm	D mm	C(H6) mm	K	M mm	J mm	L mm	E mm	F mm
V-210A6	254	109	133,35	30	220	6-M16	5	18	34	25	106,375

G mm	O max.	O min.	P max.	P min.	S mm	U max.	W mm	N max.	T mm	R mm	V
171,45	37,5	10,5	133	108	36	M20x2,5	45	51,1	40	16	6-M12

Inkl. je 1 Satz Grund- und weiche Aufsatzbacken, Befestigungsschrauben / Incl. 1 set each of hardened base jaws and soft top jaws, fixation screws

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
