Combination shell mill adapter DIN 2080 SK40, D:40

Preview: Combination shell mill adapter DIN 2080 SK40, D:40 Preview: Drawing Combination shell mill adapter DIN 2080 SK40, D:40
Combination shell mill adapter DIN 2080 SK40, D:40

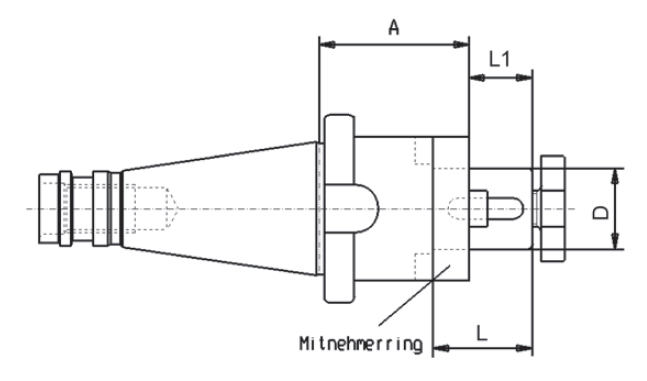

Drawing Combination shell mill adapter DIN 2080 SK40, D:40

€48.10 *
€57.24 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7332-40-40
  • Customs tariff number: 8466 1038
  • European article number: 4049794016831
  • Weight: 2,5 kg
  • In stock: 7
Description Technical data Evaluations 0
Description
Combination shell mill adapter DIN 2080 - SK 40 - D: 40 mm more
Close menu
Product information "Combination shell mill adapter DIN 2080 SK40, D:40"

Combination shell mill adapter DIN 2080

- SK 40
- D: 40 mm

Tool holders: DIN 2080
Type: Combination shell mill adaptors
Size: SK 40
Ø : 40 mm
Related links to "Combination shell mill adapter DIN 2080 SK40, D:40"
Technical data
Größe / Size D mm A mm L mm L1 mm SK 30 16 35 27 17 SK 30 22... more
Zurück
Größe /
Size		 D
mm		 A
mm		 L
mm		 L1
mm
SK 30 16 35 27 17
SK 30 22 35 31 19
SK 30 27 35 33 21
SK 40 13 52 22 12
SK 40 16 52 27 17
SK 40 22 52 32 19
SK 40 27 52 33 21
SK 40 32 52 38 24
SK 40 40 52 41 27
SK 50 16 55 27 17
SK 50 22 55 31 19
SK 50 27 55 33 21
SK 50 32 55 38 24
SK 50 40 55 41 27

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
