Combi shell mill adapter DIN 69871 SK40, D:13

Preview: Kombi Aufsteck-Fräsdorn, DIN 69871 SK 40, D: 13 mm Preview: Zeichnung Kombi Aufsteck-Fräsdorn, DIN 69871 SK 40, D: 13 mm
Kombi Aufsteck-Fräsdorn, DIN 69871 SK 40, D: 13 mm

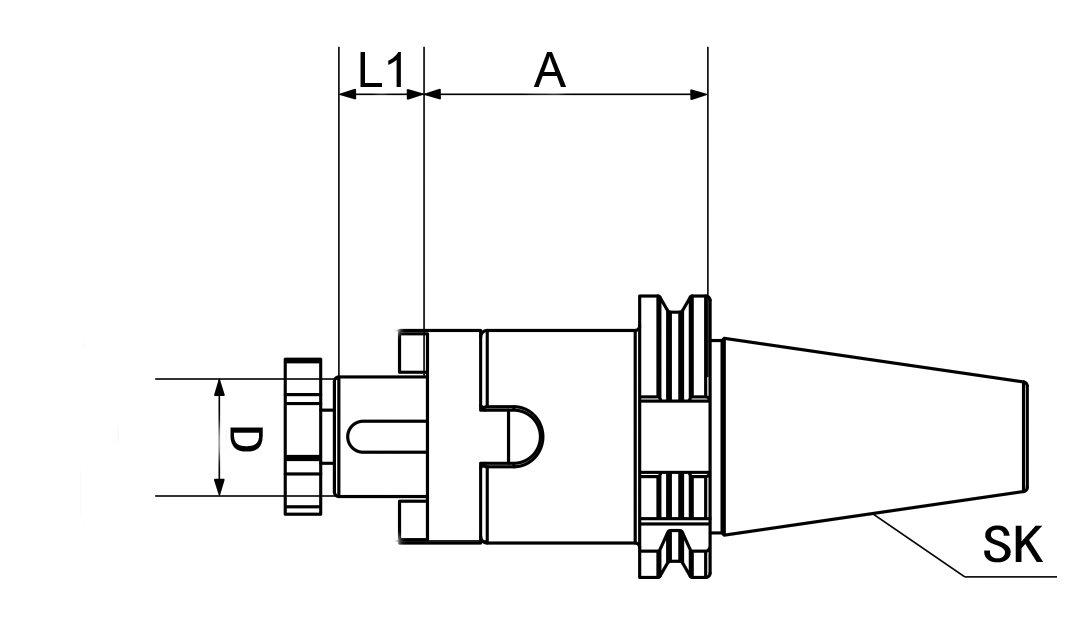

Zeichnung Kombi Aufsteck-Fräsdorn, DIN 69871 SK 40, D: 13 mm

€52.13 *
€62.03 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7301-40-13
  • Customs tariff number: 8466 1038
  • European article number: 4049794017685
  • Weight: 1 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Combination shell mill adapter DIN 69871 - SK 40 - D: 13 mm more
Close menu
Product information "Combi shell mill adapter DIN 69871 SK40, D:13"

Combination shell mill adapter DIN 69871

- SK 40
- D: 13 mm

Tool holders: DIN 69871
Type: Combination shell mill adaptors
Size: SK 40
Ø : 13 mm
Related links to "Combi shell mill adapter DIN 69871 SK40, D:13"
Technical data
Größe / size D mm A mm L mm L1 mm SK 40 13 55 22... more
Zurück
Größe /
size		 D
mm		 A
mm		 L
mm		 L1
mm
SK 40 13 55 22 12
SK 40 16 55 27 17
SK 40 22 55 32 19
SK 40 27 55 33 21
SK 40 32 60 38 24
SK 40 40 60 41 27
SK 50 16 55 27 17
SK 50 22 55 31 19
SK 50 27 55 33 21
SK 50 32 55 38 24
SK 50 40 55 41 27

Gewuchtet G = 6,3 15.000 U/min. /
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
