Combination shell mill adapter, MT3, D: 16 mm

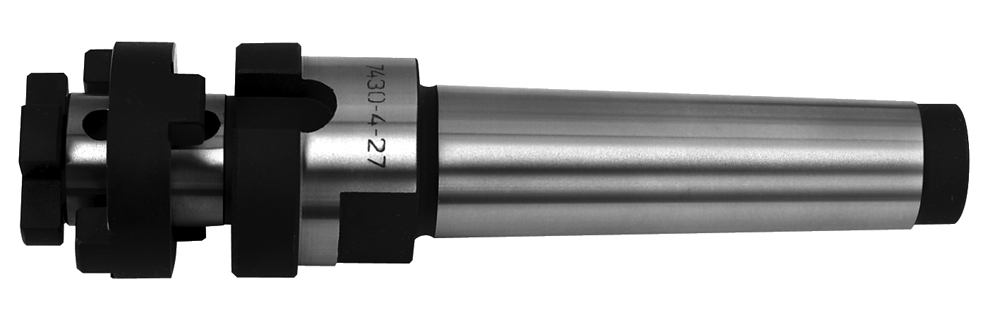

Preview: Combination shell mill adapter, MT3, D: 16 mm Preview: Drawing Combination shell mill adapter, MT3, D: 16 mm
Combination shell mill adapter, MT3, D: 16 mm

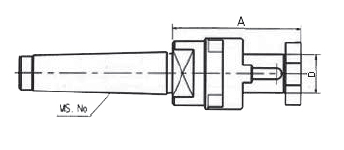

Drawing Combination shell mill adapter, MT3, D: 16 mm

€43.99 *
€52.35 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7430-3-16
  • Customs tariff number: 8466 1038
  • European article number: 4260073572224
  • Weight: 0,55 kg
  • In stock: 8
Description Technical data Evaluations 0
Description
Combination shell mill adapter with morse taper - MT 3 - D: 16 mm more
Close menu
Product information "Combination shell mill adapter, MT3, D: 16 mm"

Combination shell mill adapter with morse taper

- MT 3
- D: 16 mm

Tool holders: Morse taper tooling
Type: Combination shell mill adaptors
Size: MT 3
Ø : 16 mm
Related links to "Combination shell mill adapter, MT3, D: 16 mm"
Technical data
Größe / Size D mm A mm MK 2 16 58 MK 2 22 48... more
Zurück
Größe /
Size		 D
mm		 A
mm
MK 2 16 58
MK 2 22 48
MK 2 27 48
MK 3 16 55
MK 3 22 48
MK 3 27 48
MK 3 32 55
MK 4 16 55
MK 4 22 55
MK 4 27 55
MK 4 32 55
MK 4 40 55
MK 5 16 75
MK 5 22 75
MK 5 27 75
MK 5 32 75
MK 5 40 75
MK 5 50 75

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
