End mill adapter WELDON DIN 69871, SK40-16-100

Preview: End mill adapter WELDON DIN 69871, SK40-16-100 Preview: Drawing End mill adapter WELDON DIN 69871, SK40-16-100
End mill adapter WELDON DIN 69871, SK40-16-100

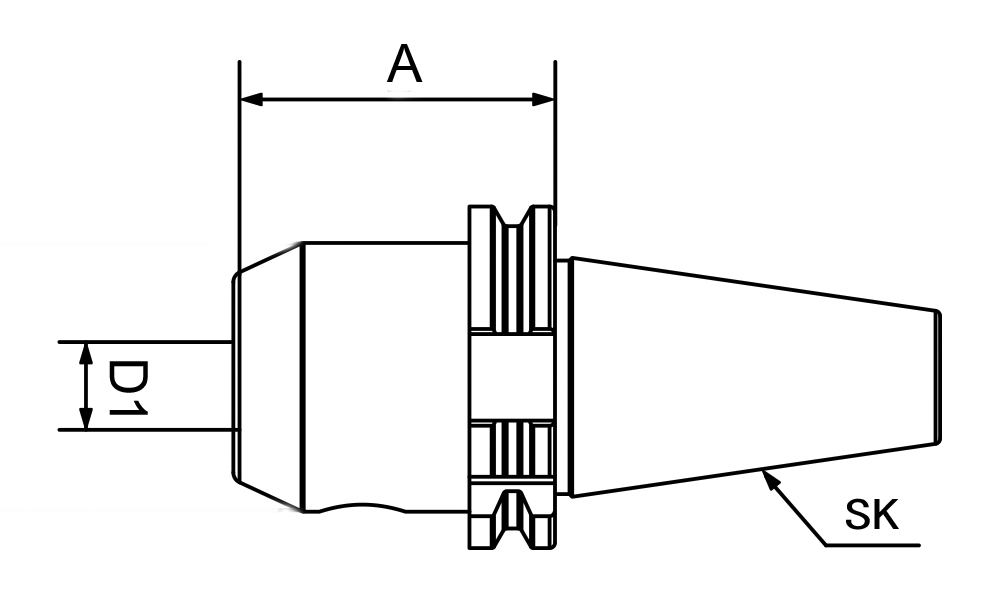

Drawing End mill adapter WELDON DIN 69871, SK40-16-100

€39.74 *
€47.29 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7625-40-16-100
  • Customs tariff number: 8466 1038
  • European article number: 4049794018071
  • Weight: 1,85 kg
  • In stock: 13
Description Technical data Evaluations 0
Description
End mill adapter WELDON, SK40 - DIN 69871 - SK 40 - D1: 16 mm - A: 100 mm more
Close menu
Product information "End mill adapter WELDON DIN 69871, SK40-16-100"

End mill adapter WELDON, SK40

- DIN 69871
- SK 40
- D1: 16 mm
- A: 100 mm

Tool holders: DIN 69871
Type: End mill adaptors Weldon
Size: SK 40
Ø : 16 mm
Related links to "End mill adapter WELDON DIN 69871, SK40-16-100"
Technical data
Größe / Size D1 / mm A mm SK 40 16 63 SK 40 16... more
Zurück
Größe /
Size		 D1 /
mm		 A
mm
SK 40 16 63
SK 40 16 100
SK 40 16 160
SK 40 18 63
SK 40 18 100
SK 40 18 160
SK 40 20 63
SK 40 20 100
SK 40 20 160
SK 40 22 63
SK 40 25 100
SK 40 25 160
SK 40 32 100
SK 40 32 160
SK 40 40 120

Gewuchtet G = 6,3 15.000 U/min.
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
