Face mill holder DIN 69871 SK40, D:40 / A:100

Preview: Face mill holder DIN 69871 SK40, D:40 / A:100 Preview: Drawing Face mill holder DIN 69871 SK40, D:40 / A:100
Face mill holder DIN 69871 SK40, D:40 / A:100

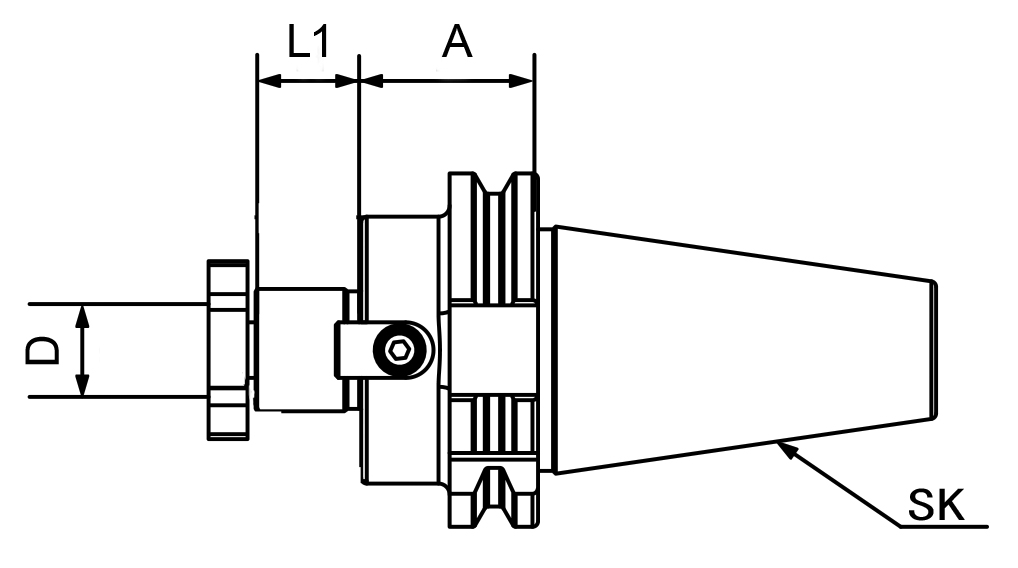

Drawing Face mill holder DIN 69871 SK40, D:40 / A:100

€82.01 *
€97.59 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7369-40-40-100
  • Customs tariff number: 8466 1038
  • European article number: 4049794033111
  • Weight: 4 kg
  • In stock: 6
Description Technical data Evaluations 0
Description
Face mill holder DIN 69871 SK40 - SK 40 - D: 40 mm - A: 100 mm more
Close menu
Product information "Face mill holder DIN 69871 SK40, D:40 / A:100"

Face mill holder DIN 69871 SK40

- SK 40
- D: 40 mm
- A: 100 mm

Tool holders: DIN 69871
Type: Face mill holders
Size: SK 40
Ø : 40 mm
Related links to "Face mill holder DIN 69871 SK40, D:40 / A:100"
Technical data
Größe / Size D mm A mm L1 mm SK 40 16 35 17 SK 40 16 100 17... more
Zurück
Größe /
Size		 D
mm		 A
mm		 L1
mm
SK 40 16 35 17
SK 40 16 100 17
SK 40 22 35 19
SK 40 22 100 19
SK 40 27 40 21
SK 40 27 100 21
SK 40 32 50 24
SK 40 32 100 24
SK 40 40 50 27
SK 40 40 100 27
SK 40 40 160 27

Gewuchtet G = 6,3 15.000 U/min. /
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
