Face mill holder MAS BT40, D:22 mm / A:45 mm

Preview: Face mill holder MAS BT40, D:22 mm / A:45 mm Preview: Drawing Face mill holder MAS BT40, D:22 mm / A:45 mm
Face mill holder MAS BT40, D:22 mm / A:45 mm

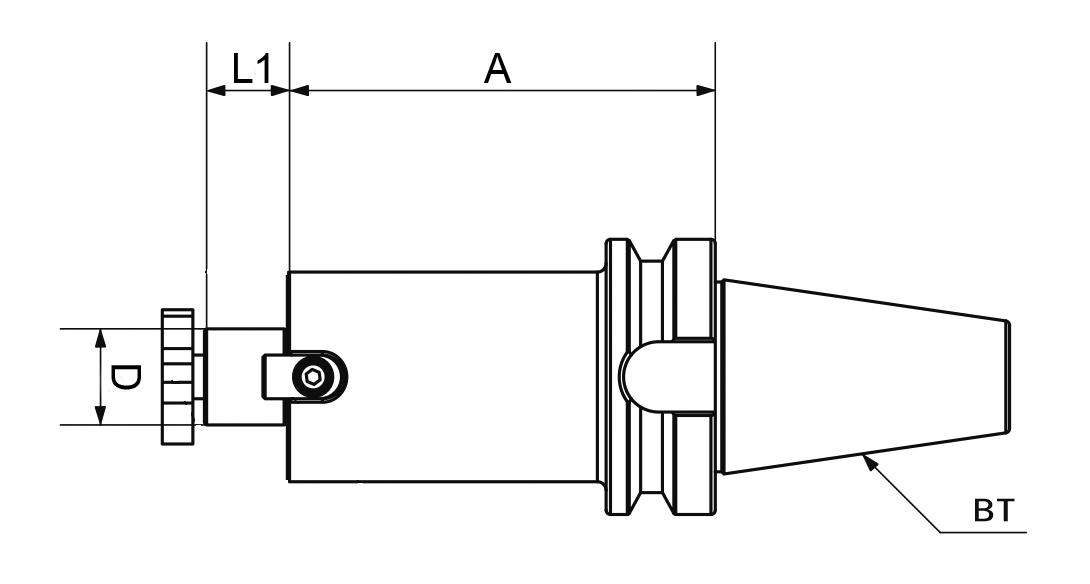

Drawing Face mill holder MAS BT40, D:22 mm / A:45 mm

€38.02 *
€45.24 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7388-40-22
  • Customs tariff number: 8466 1038
  • European article number: 4049794018996
  • Weight: 1,4 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Face mill holder MAS BT40 - BT 40 - D: 22 mm - A: 45 mm more
Close menu
Product information "Face mill holder MAS BT40, D:22 mm / A:45 mm"

Face mill holder MAS BT40

- BT 40
- D: 22 mm
- A: 45 mm

Tool holders: MAS BT
Type: Face mill holders
Size: BT 40
Ø : 22 mm
Related links to "Face mill holder MAS BT40, D:22 mm / A:45 mm"
Technical data
Größe / Size D mm A mm L1 mm BT 40 16 40 17 BT 40 16 100 17... more
Zurück
Größe /
Size		 D
mm		 A
mm		 L1
mm
BT 40 16 40 17
BT 40 16 100 17
BT 40 22 45 19
BT 40 22 100 19
BT 40 27 40 21
BT 40 27 100 21
BT 40 32 50 24
BT 40 32 100 24
BT 40 40 50 27
BT 40 40 100 27

Gewuchtet G = 6,3 15.000 U/min.
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
