Shrink chuck SK 40 Ø 8 x 80 mm, DIN 69871

Preview: Shrink chuck SK 40 Ø 8 x 80 mm, DIN 69871 Preview: Drawing Shrink chuck SK 40 Ø 8 x 80 mm, DIN 69871
Shrink chuck SK 40 Ø 8 x 80 mm, DIN 69871

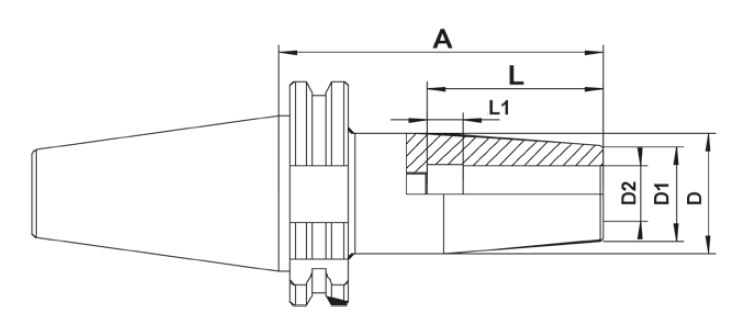

Drawing Shrink chuck SK 40 Ø 8 x 80 mm, DIN 69871

€70.70 *
€84.13 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-SHFSK40-8-80
  • Customs tariff number: 8466 1038
  • European article number: 4049794668252
  • Weight: 1,1 kg
  • In stock: 10
Description Technical data Evaluations 0
Description
Shrink chuck DIN 69871, SK40 - DIN 69871 AD/B - balanced G = 2,5 25.000 U/min. - SK 40 -... more
Close menu
Product information "Shrink chuck SK 40 Ø 8 x 80 mm, DIN 69871"

Shrink chuck DIN 69871, SK40

- DIN 69871 AD/B
- balanced G = 2,5 25.000 U/min.
- SK 40
- D2: 8 mm
- A: 80 mm

Tool holders: DIN 69871
Type: Shrink chucks
Size: SK 40
Ø : 8 mm
Related links to "Shrink chuck SK 40 Ø 8 x 80 mm, DIN 69871"
Technical data
Größe / Size D2 mm D1 mm D mm L mm L1 mm A mm SK 40 3 10 20 15... more
Zurück
Größe /
Size		 D2
mm		 D1
mm		 D
mm		 L
mm		 L1
mm		 A
mm
SK 40 3 10 20 15 - 80
SK 40 3 10 20 15 - 120
SK 40 4 15 22 15 - 80
SK 40 4 15 22 15 - 120
SK 40 5 15 22 20 - 80
SK 40 5 15 22 20 - 120
SK 40 6 20 27 36 10 80
SK 40 6 20 27 36 10 120
SK 40 8 20 27 36 10 80
SK 40 8 20 27 36 10 120
SK 40 10 24 31 41 10 80
SK 40 10 24 31 41 10 120
SK 40 12 24 31 47 10 80
SK 40 12 24 31 47 10 120

Gewuchtet G = 2,5 25.000 U/min. /
Balanced G = 2,5 25.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
