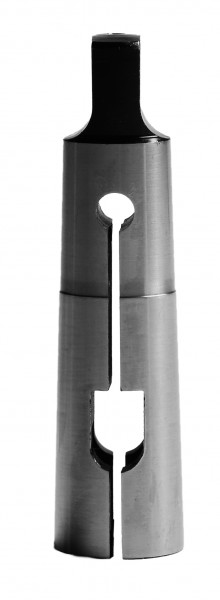

Clamping sleeve for spiral drills MT 2 Ø 8,5 mm
€16.27*
€19.36 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
06-514E-8,5
Customs tariff number
8466 1020
European Article Number
4049794037720
Weight
0,05 kg
Stock:
10
Related links:
Request Item
Product information "Clamping sleeve for spiral drills MT 2 Ø 8,5 mm"
Clamping sleeve DIN 6329 for spiral drills
- MT 2
- bore-ø 8,5 mm
| Bore Ø mm: | 8,5 |
|---|---|
| MT: | 2 |
| Type: | Clamping sleeves |
Technical Data
| MK / MT |
Außen-Ø / External-Ø mm |
L mm |
Abmessungen / Dimensions |
Steigung / Pitch mm |
| 1 | 12,2 | 65,5 | 3,0 - 8,0 | 0,5 |
| 2 | 18 | 78,5 | 5,0 - 13,0 | 0,5 |
| 3 | 24 | 98 | 10,0 - 16,0 | 1 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
