Reducing sleeve 20/6 mm
Product number:
94-52-20/6
Customs tariff number
8466 1020
European Article Number
4049794002919
Weight
0,11 kg
Stock:
0
Related links:
Request Item
Product information "Reducing sleeve 20/6 mm"
Reducing sleeve for hydraulic expansion mandrels,
D 20 mm, bore-Ø 6 mm
- for diameter reduction of hydraulic expansion mandrels
- mechanically sealed up to 60 bar
| Bore Ø mm: | 6 |
|---|---|
| Type: | Reducing sleeves for hydraulic chucks |
| Ø : | 20 mm |

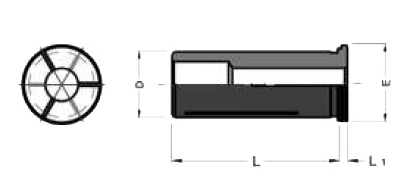

Technical Data
| D mm |
Bohrungen Ø mm / Bores Ø mm |
E mm |
L mm |
L1 mm |
| 12 | 3, 4 | 16 | 45 | 2 |
| 12 | 5, 6, 8 | 16 | 45 | 2 |
| 16 | 3, 4 | 20 | 47 | 3 |
| 16 | 5, 6, 8, 10, 12 | 20 | 47 | 3 |
| 20 | 3, 4 | 24 | 50,5 | 2 |
| 20 | 5, 6, 8, 10, 12, 14, 16 | 24 | 50,5 | 2 |
| 32 | 10, 12, 16, 18, 20, 25 | 36 | 61 | 3 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
