Revolving tailstock centre,1605 standard MT 4

Preview: Revolving tailstock centre,1605 standard MT 4 Preview: Drawing 1 Revolving tailstock centre,1605 standard MT 4 Preview: Drawing 2 Revolving tailstock centre,1605 standard MT 4

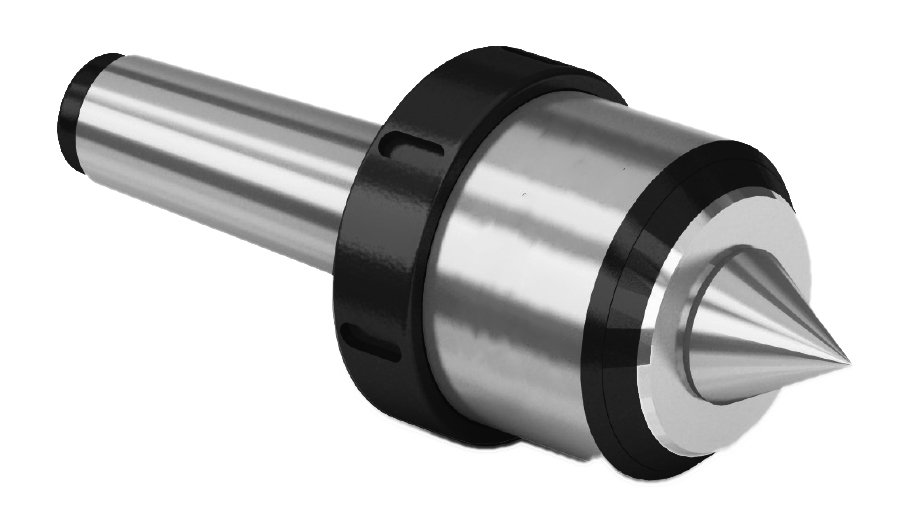

Revolving tailstock centre,1605 standard MT 4

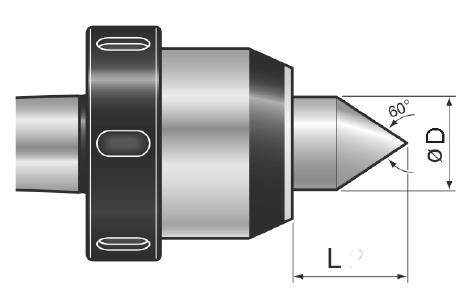

Drawing 1 Revolving tailstock centre,1605 standard MT 4

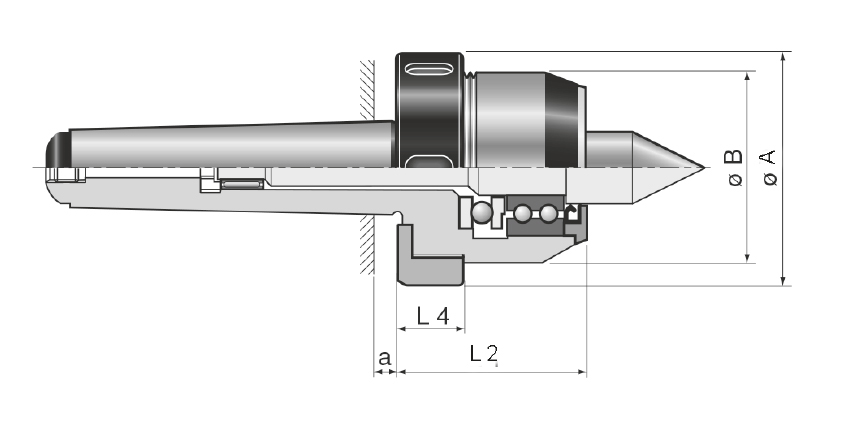

Drawing 2 Revolving tailstock centre,1605 standard MT 4

€414.72 *
€493.52 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 03-1604
  • Customs tariff number: 8466 2091
  • European article number: 4049794068823
  • Weight: 1,9 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Heavy-duty NC revolving tailstock centre, series 1605 - Standard - MT 4 - with... more
Close menu
Product information "Revolving tailstock centre,1605 standard MT 4"

Heavy-duty NC revolving tailstock centre, series 1605 - Standard

- MT 4

- with draw-off nut

Related links to "Revolving tailstock centre,1605 standard MT 4"
Technical data
MK / MT A mm B mm L1 mm L2 mm Drehzahl / Speed max. Rundlaufgenauigkeit /... more
Zurück
MK /
MT		 A
mm		 B
mm		 L1
mm		 L2
mm		 Drehzahl /
Speed max.		 Rundlaufgenauigkeit /
Run-out max. mm		 kg
3 69 55 49 22 7000 0,005 1,1
4 74 61 57 24 5500 0,005 1,9
5 92 80 65 24 4500 0,005 3,9
6 104 93 75 27 3200 0,008 8,8



MK /
MT		 D
mm		 L
mm
3 22 28
4 29 40
5 38 48
6 42 55

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
