Revolving tailstock centre,1605 standard MT 6

Preview: Revolving tailstock centre,1605 standard MT 6 Preview: Drawing 1 Revolving tailstock centre,1605 standard MT 6 Preview: Drawing 2 Revolving tailstock centre,1605 standard MT 6

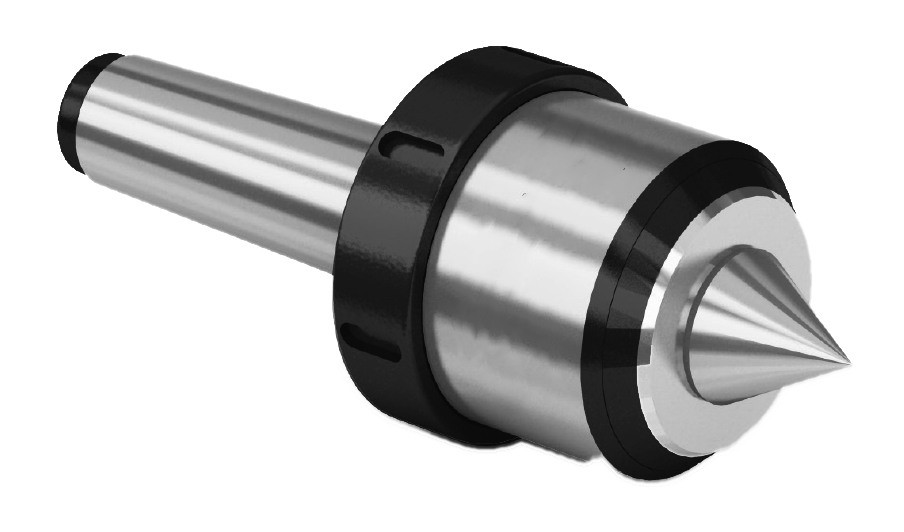

Revolving tailstock centre,1605 standard MT 6

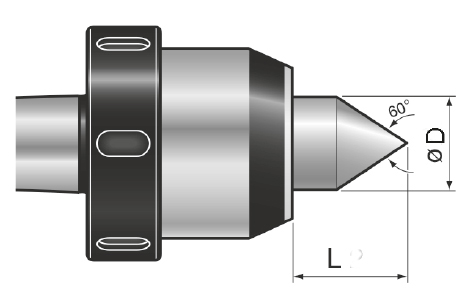

Drawing 1 Revolving tailstock centre,1605 standard MT 6

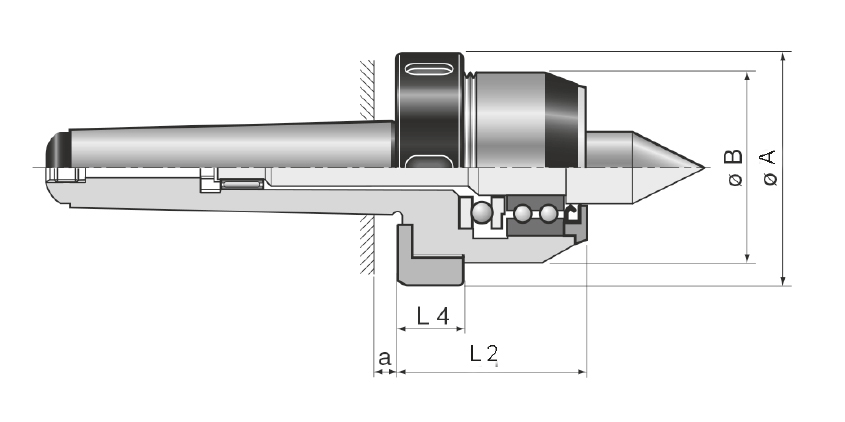

Drawing 2 Revolving tailstock centre,1605 standard MT 6

€1,012.54 *
€1,204.92 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 03-1606
  • Customs tariff number: 8466 2091
  • European article number: 4049794068847
  • Weight: 8,8 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Heavy-duty NC revolving tailstock centre, series 1605 - Standard - MT 6 - with... more
Close menu
Product information "Revolving tailstock centre,1605 standard MT 6"

Heavy-duty NC revolving tailstock centre, series 1605 - Standard

- MT 6

- with draw-off nut

Related links to "Revolving tailstock centre,1605 standard MT 6"
Technical data
MK / MT A mm B mm L1 mm L2 mm Drehzahl / Speed max. Rundlaufgenauigkeit /... more
Zurück
MK /
MT		 A
mm		 B
mm		 L1
mm		 L2
mm		 Drehzahl /
Speed max.		 Rundlaufgenauigkeit /
Run-out max. mm		 kg
3 69 55 49 22 7000 0,005 1,1
4 74 61 57 24 5500 0,005 1,9
5 92 80 65 24 4500 0,005 3,9
6 104 93 75 27 3200 0,008 8,8



MK /
MT		 D
mm		 L
mm
3 22 28
4 29 40
5 38 48
6 42 55

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
