Revolving tailstock centre, 805 KOP MT 4

Revolving tailstock centre, 805 KOP MT 4

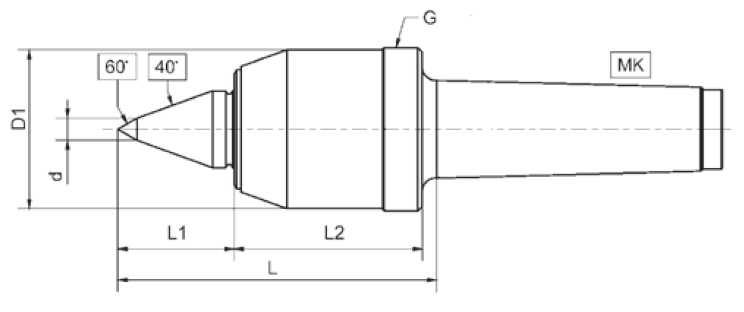

Drawing Revolving tailstock centre, 805 KOP MT 4

€882.07 *

€1,049.66 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 03-845KOP
Customs tariff number: 8466 2091
European article number: 4049794005576
Weight: 2,5 kg
In stock: 2

High performance revolving tailstock centre, series 805 KOP with extended tip 30°/ 60°... more

Close menu

Product information "Revolving tailstock centre, 805 KOP MT 4"

High performance revolving tailstock centre, series 805 KOP
with extended tip 30°/ 60°

- type 845 KOP
- MT 4

- especially developed for use on NC-machines with
draw-off nut
- completely hardened and ground
- centre tip supported by needle bearings
- for high speeds with optimum concentricity
- permanent lubrication
- with additional sealing also suitable for
grinding machines

Related links to "Revolving tailstock centre, 805 KOP MT 4"

Typ / Type MK / MT D mm D1 mm L mm L1 mm L2 mm d mm Drehzahl / Speed max.... more

Zurück

Typ / Type	MK / MT	D mm	D1 mm	L mm	L1 mm	L2 mm	d mm	Drehzahl / Speed max.	Werkstück / Work piece max. kg	Rundlaufgenauigkeit / Run-out max. mm	G
835 KOP	3	52	25	104	40	56	8	12000	200	0,003	M 54 x 1,5
845 KOP	4	60	28	115	45	63	8	10000	400	0,003	M 62 x 1,5
855 KOP	5	72	35	146	53	82	10	8000	800	0,003	M 74 x 1,5
865 KOP	6	83	44	171	67	88	14	5000	1700	0,007	M 85 x 1,5

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
