€178.20 *
€212.06 incl. VAT
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 03-123KOP
- Customs tariff number: 8466 2091
- European article number: 4260073571456
- Weight: 0,75 kg
- In stock: 2
Precision revolving tailstock centre, series 100 KOP with extended tip 30°/ 60°
- type... more
Product information "Revolving tailstock centre, 100 KOP type 123"
Precision revolving tailstock centre, series 100 KOP
with extended tip 30°/ 60°
- type 123 KOP
- MT 2
- universal centre with 3 groove ball bearings
- housing hardened and ground
- centre tip from chromium-alloyed tool steel
- high concentricity
- easy and smooth running
- maintenance-free permanent lubrication
Related links to "Revolving tailstock centre, 100 KOP type 123"

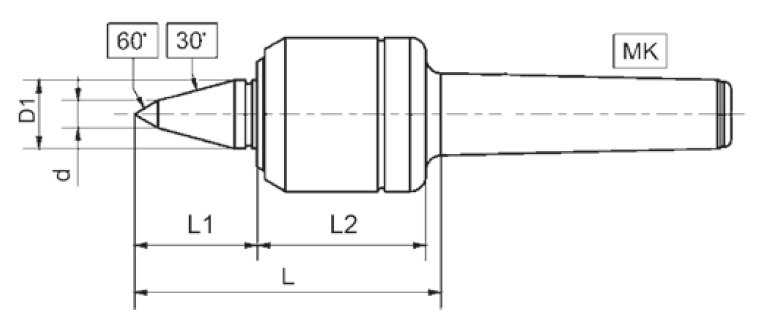

Typ / Type
MK / MT
D mm
D1 mm
L mm
L1 mm
L2 mm... more
Typ / Type |
MK / MT |
D mm |
D1 mm |
L mm |
L1 mm |
L2 mm |
d mm |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
123 KOP | 2 | 45 | 20 | 94 | 36 | 49 | 8 | 5000 | 100 | 0,005 |
131 KOP | 3 | 45 | 20 | 94 | 36 | 49 | 8 | 5000 | 150 | 0,005 |
133 KOP | 3 | 60 | 24 | 110 | 46 | 60 | 10 | 4000 | 300 | 0,005 |
141 KOP | 4 | 60 | 24 | 117 | 46 | 60 | 10 | 4000 | 400 | 0,005 |
143 KOP | 4 | 76 | 32 | 139 | 55 | 73 | 12 | 3200 | 650 | 0,008 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
