Revolving tailstock centre, series 80 MT 4

Preview: Revolving tailstock centre, series 80 MT 4 Preview: Drawing Revolving tailstock centre, series 80 MT 4
Revolving tailstock centre, series 80 MT 4

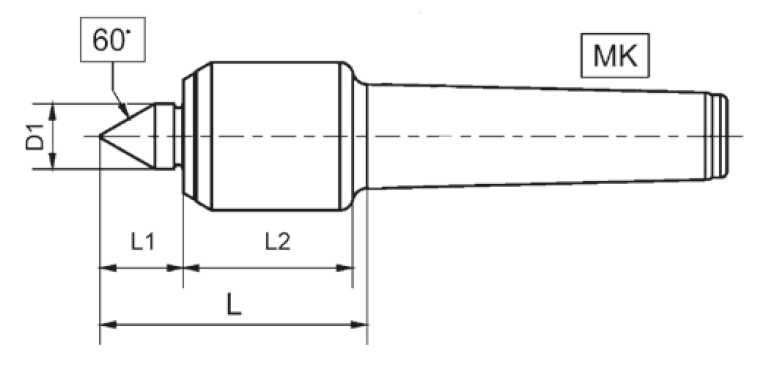

Drawing Revolving tailstock centre, series 80 MT 4

€262.87 *
€312.82 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 03-80-04
  • Customs tariff number: 8466 2091
  • European article number: 4260073571319
  • Weight: 1,1 kg
  • In stock: 7
Description Technical data Evaluations 0
Description
Precision revolving tailstock centre, series 80 - type 84 - MT 4 - solid design -... more
Close menu
Product information "Revolving tailstock centre, series 80 MT 4"

Precision revolving tailstock centre, series 80

- type 84
- MT 4

- solid design
- centre tip with needle bearings
- slim design with small casing diameter
- maintenance-free lubrication
- housing hardened and ground

Related links to "Revolving tailstock centre, series 80 MT 4"
Technical data
Typ / Type MK / MT D mm D1 mm L mm L1 mm L2 mm Drehzahl / Speed max.... more
Zurück
Typ /
Type		 MK /
MT		 D
mm		 D1
mm		 L
mm		 L1
mm		 L2
mm		 Drehzahl /
Speed max.		 Werkstück /
Work piece max. kg		 Rundlaufgenauigkeit /
Run-out max. mm
82 2 32 15 64 19,5 39 6000 200 0,005
83 3 34 15 64 19,5 39 6000 400 0,005
84 4 43 20 77 27 43 6000 800 0,005
85 5 58 30 105 37 59 4000 1200 0,008

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
