Revolving tailstock centre, series 80 MT 3

Revolving tailstock centre, series 80 MT 3

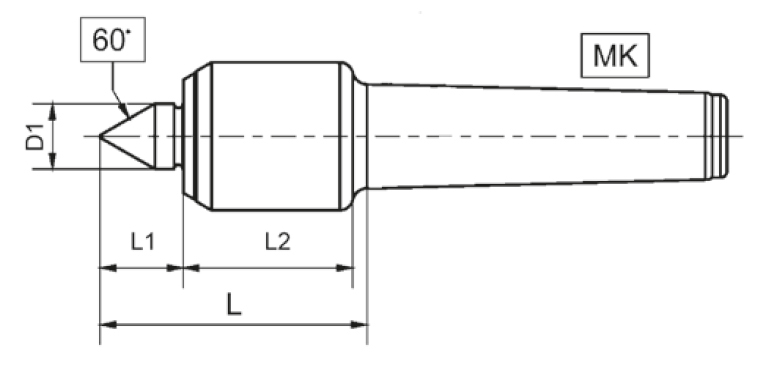

Drawing Revolving tailstock centre, series 80 MT 3

€217.08 *

€258.33 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 03-80-03
Customs tariff number: 8466 2091
European article number: 4260073571302
Weight: 0,6 kg
In stock: 3

Precision revolving tailstock centre, series 80 - type 83 - MT 3 - solid design -... more

Close menu

Product information "Revolving tailstock centre, series 80 MT 3"

Precision revolving tailstock centre, series 80

- type 83
- MT 3

- solid design
- centre tip with needle bearings
- slim design with small casing diameter
- maintenance-free lubrication
- housing hardened and ground

Related links to "Revolving tailstock centre, series 80 MT 3"

Typ / Type MK / MT D mm D1 mm L mm L1 mm L2 mm Drehzahl / Speed max.... more

Zurück

Typ / Type	MK / MT	D mm	D1 mm	L mm	L1 mm	L2 mm	Drehzahl / Speed max.	Werkstück / Work piece max. kg	Rundlaufgenauigkeit / Run-out max. mm
82	2	32	15	64	19,5	39	6000	200	0,005
83	3	34	15	64	19,5	39	6000	400	0,005
84	4	43	20	77	27	43	6000	800	0,005
85	5	58	30	105	37	59	4000	1200	0,008

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
