Revolving tailstock centre VDI 30

Preview: Revolving tailstock centre VDI 30 Preview: Drawing Revolving tailstock centre VDI 30 Preview: Inserts Revolving tailstock centre VDI 30
Revolving tailstock centre VDI 30

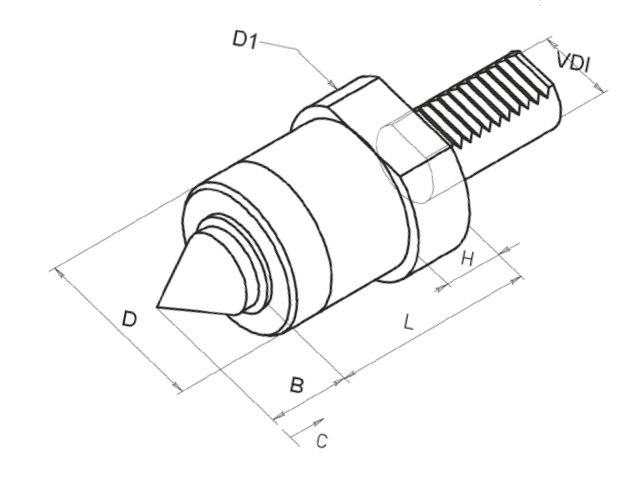

Drawing Revolving tailstock centre VDI 30
Inserts Revolving tailstock centre VDI 30

€443.16 *
€527.36 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 47-MZ2-30
  • Customs tariff number: 8466 1038
  • European article number: 4049794662236
  • Weight: 1,85 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Revolving tailstock centre with VDI shank, spring-loaded - VDI 30 - especially for... more
Close menu
Product information "Revolving tailstock centre VDI 30"

Revolving tailstock centre with VDI shank, spring-loaded

- VDI 30

- especially for the use on CNC lathes
- for interchangeable inserts

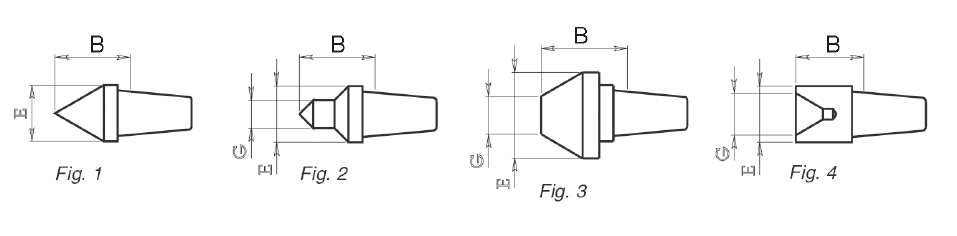

- delivered with 1 standard insert (Fig. 1)

Related links to "Revolving tailstock centre VDI 30"
Technical data
VDI D mm D1 mm L mm H mm B mm Federweg / Travelstroke max.... more
Zurück
VDI D
mm		 D1
mm		 L
mm		 H
mm		 B
mm		 Federweg /
Travelstroke max.
30 58 68 78 20 34 2,5
40 58 83 80 22 34 2,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
