V-blocks with clamping bracket, L: 105 mm

Preview: V-blocks with clamping bracket, L: 105 mm Preview: Drawing V-blocks with clamping bracket, L: 105 mm
V-blocks with clamping bracket, L: 105 mm

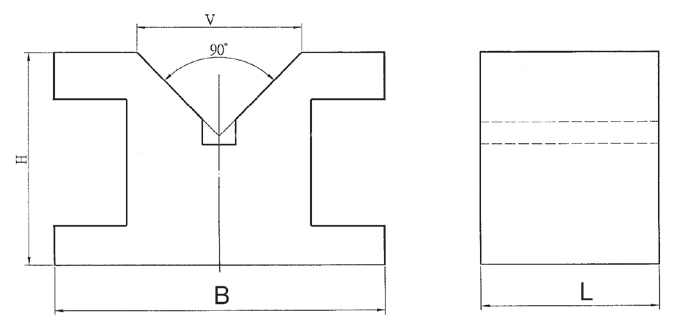

Drawing V-blocks with clamping bracket, L: 105 mm

€134.06 *
€159.53 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-PPSB-105
  • Customs tariff number: 8466 3000
  • European article number: 4049794663820
  • Weight: 7,05 kg
  • In stock: 32
Description Technical data Product Safety Information Evaluations 0
Description
V-blocks with clamping bracket, L: 105 mm - suitable for clamping round material - one... more
Close menu
Product information "V-blocks with clamping bracket, L: 105 mm"

V-blocks with clamping bracket, L: 105 mm

- suitable for clamping round material
- one V-groove 90°
- hardened special steel HRC 52-58 HRC
- parallelism: 0,005 / 100 mm
- squareness: 0,005 / 100 mm
- delivered in pairs / price per pair

Related links to "V-blocks with clamping bracket, L: 105 mm"
Technical data
B mm L mm H mm V mm 35 35 30 12 60 60... more
Zurück
B
mm		 L
mm		 H
mm		 V
mm
35 35 30 12
60 60 50 28
101,6 76,2 76,2 60
105 105 78 60

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
