VDI 50 parting off tool holder, left, AL-50-26

Preview: VDI 50 parting off tool holder, left, AL-50-26 Preview: Drawing VDI 50 parting off tool holder, left, AL-50-26
VDI 50 parting off tool holder, left, AL-50-26

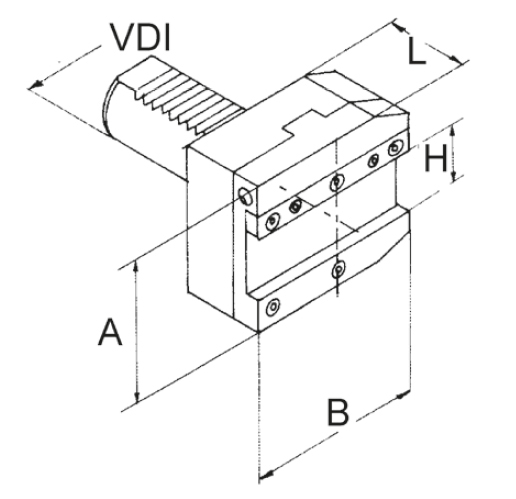

Drawing VDI 50 parting off tool holder, left, AL-50-26

€281.59 *
€335.09 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 47-AL-50-26
  • Customs tariff number: 8466 1031
  • European article number: 4049794667095
  • Weight: 4,2 kg
  • In stock: 3
Description Technical data Evaluations 0
Description
VDI 50 parting off tool holder, left hand - VDI-Tool holder - type AL-50-26 more
Close menu
Product information "VDI 50 parting off tool holder, left, AL-50-26"

VDI 50 parting off tool holder, left hand

- VDI-Tool holder

- type AL-50-26

Type: Parting off tool holder
VDI: 50
Related links to "VDI 50 parting off tool holder, left, AL-50-26"
Technical data
VDI H mm A mm B mm L mm 30 26 71 70 50 40 26 84,5 85... more
Zurück
VDI H
mm		 A
mm		 B
mm		 L
mm
30 26 71 70 50
40 26 84,5 85 50
40 32 84,5 85 50
50 26 88 100 50
50 32 88 100 50

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
