Reduction sleeve slotted, RZ-40-25

Preview: Reduction sleeve slotted, RZ-40-25 Preview: Drawing Reduction sleeve slotted, RZ-40-25
Reduction sleeve slotted, RZ-40-25

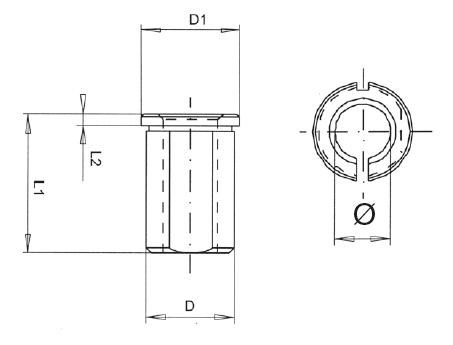

Drawing Reduction sleeve slotted, RZ-40-25

€15.98 *
€19.02 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 47-RZ-40-25
  • Customs tariff number: 8466 1031
  • European article number: 4260073574907
  • Weight: 0,45 kg
  • In stock: 18
Description Technical data Product Safety Information Evaluations 0
Description
Reduction sleeve RZ 40-25, slotted - D: 40 mm - Ø 25 mm more
Close menu
Product information "Reduction sleeve slotted, RZ-40-25"

Reduction sleeve RZ 40-25, slotted

- D: 40 mm
- Ø 25 mm

Related links to "Reduction sleeve slotted, RZ-40-25"
Technical data
D mm Ø mm D1 mm L1 mm L2 mm 20 8, 10, 12, 14, 16 24 50 4 25... more
Zurück
D
mm		 Ø
mm		 D1
mm		 L1
mm		 L2
mm
20 8, 10, 12, 14, 16 24 50 4
25 8, 10, 12, 14, 16, 18, 20 29 50 4
32 8, 10, 12, 14, 16, 18, 20, 25 36 60 4
40 10, 12, 14, 16, 18, 20, 25, 32 44 75 4
50 20, 25, 32, 40 54 75 4
60 25, 32, 40, 50 64 75 4

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
