Collet chuck SK40 ER 32, DIN 2080
€33.55*
€39.92 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7616-40-32
Customs tariff number
8466 1038
European Article Number
4049794017432
Weight
0,9 kg
Stock:
31
Related links:
Request Item
Product information "Collet chuck SK40 ER 32, DIN 2080"
Collet chuck ER 32 SK40, DIN 2080
- SK 40
- ER 32
DIN: | 2080 |
---|---|
Size: | SK 40 |
Type: | Collet chucks |
for collets: | ER32 |

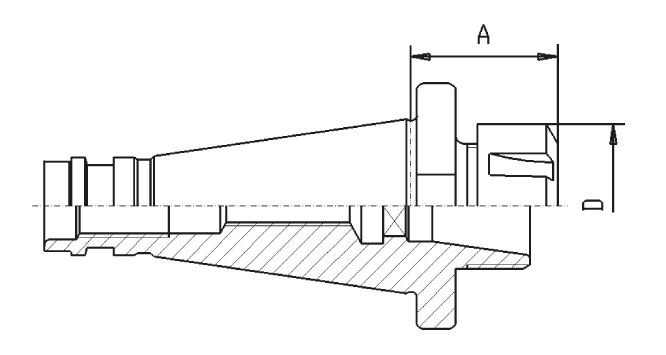

Technical Data
Größe / Size |
Spannzange / Collet |
A mm |
D mm |
SK 30 | ER 16 | 50 | 28 |
SK 30 | ER 32 | 50 | 42 |
SK 40 | ER 16 | 50 | 28 |
SK 40 | ER 25 | 50 | 42 |
SK 40 | ER 32 | 60 | 50 |
SK 40 | ER 40 | 60 | 63 |
SK 50 | ER 32 | 70 | 50 |
SK 50 | ER 40 | 70 | 63 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
