Safety guards for drilling machines

Circumferential protection for drilling machines, 220 x 130 mm - circumferential shield opens laterally - with safaty micro-switch - protection against chips, lubricant and coolant - easy adaption to the left side of the machine shield (A x B): 220 x 130 mm

Circumferential protection for drilling machines, 220 x 180 mm - circumferential shield opens laterally - with safaty micro-switch - protection against chips, lubricant and coolant - easy adaption to the left side of the machine shield (A x B): 220 x 180 mm

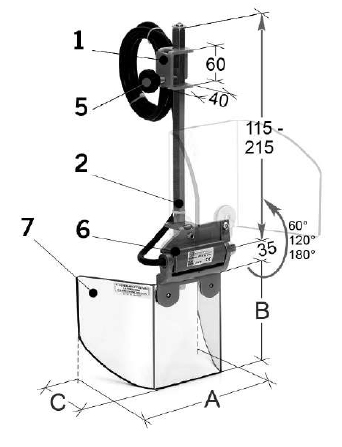

Safety guard for drilling machines 140 mm - frontal fixation (BSK10)- with adjustable hexagonal arm- shield made from acrylic glass,  vertically foldable in positions 60°, 120° and 180°- with safety micro-switch

Safety guard for drilling machines 180 mm - frontal fixation (BSK10)- with adjustable hexagonal arm- shield made from acrylic glass,  vertically foldable in positions 60°, 120° and 180°- with safety micro-switch

Safety guard for drilling machines 140 mm - lateral fixation (BSK11)- with adjustable hexagonal arm- shield made from acrylic glass,  vertically foldable in positions 60°, 120° and 180°- with safety micro-switch

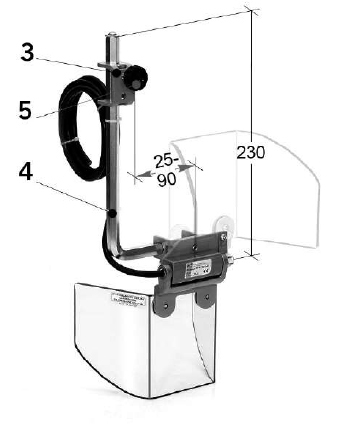

Safety guard for drilling machines 180 mm - lateral fixation (BSK11)- with adjustable hexagonal arm- shield made from acrylic glass,  vertically foldable in positions 60°, 120° and 180°- with safety micro-switch

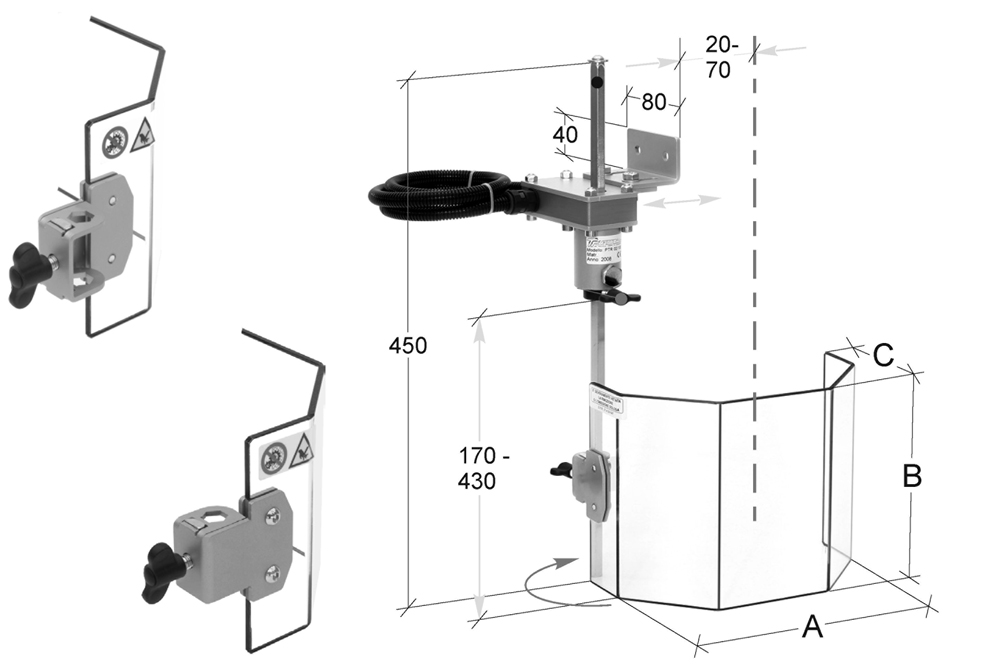

Safety guard for drilling machines type 1, 230 x 130 mm - suitable for column drilling machines- protection against chips, lubricant and coolant - with safety micro-switch - adjustable in 2 vertical positions - mounting on the left side of the machine - semi-octogonal, replaceable shield made from polycarbonate- inside or outside mounting shield (A x B): 230 x 130 mm

Safety guard for drilling machines type 1, 230 x 180 mm - suitable for column drilling machines- protection against chips, lubricant and coolant - with safety micro-switch - adjustable in 2 vertical positions - mounting on the left side of the machine - semi-octogonal, replaceable shield made from polycarbonate- inside or outside mounting shield (A x B): 230 x 180 mm

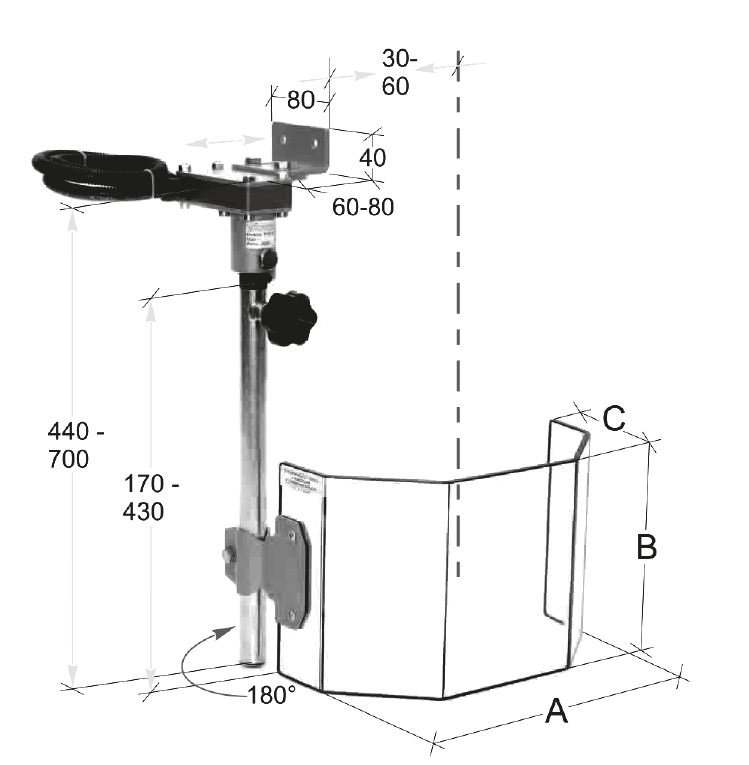

Safety guard for drilling machines type 2, 300 x 200 mm - suitable for column drilling machines- protection against chips, lubricant and coolant - with safety micro-switch - adjustable in 2 vertical positions - mounting on the left side of the machine - semi-octogonal, replaceable shield made from polycarbonate- inside or outside mounting shield (A x B): 300 x 200 mm

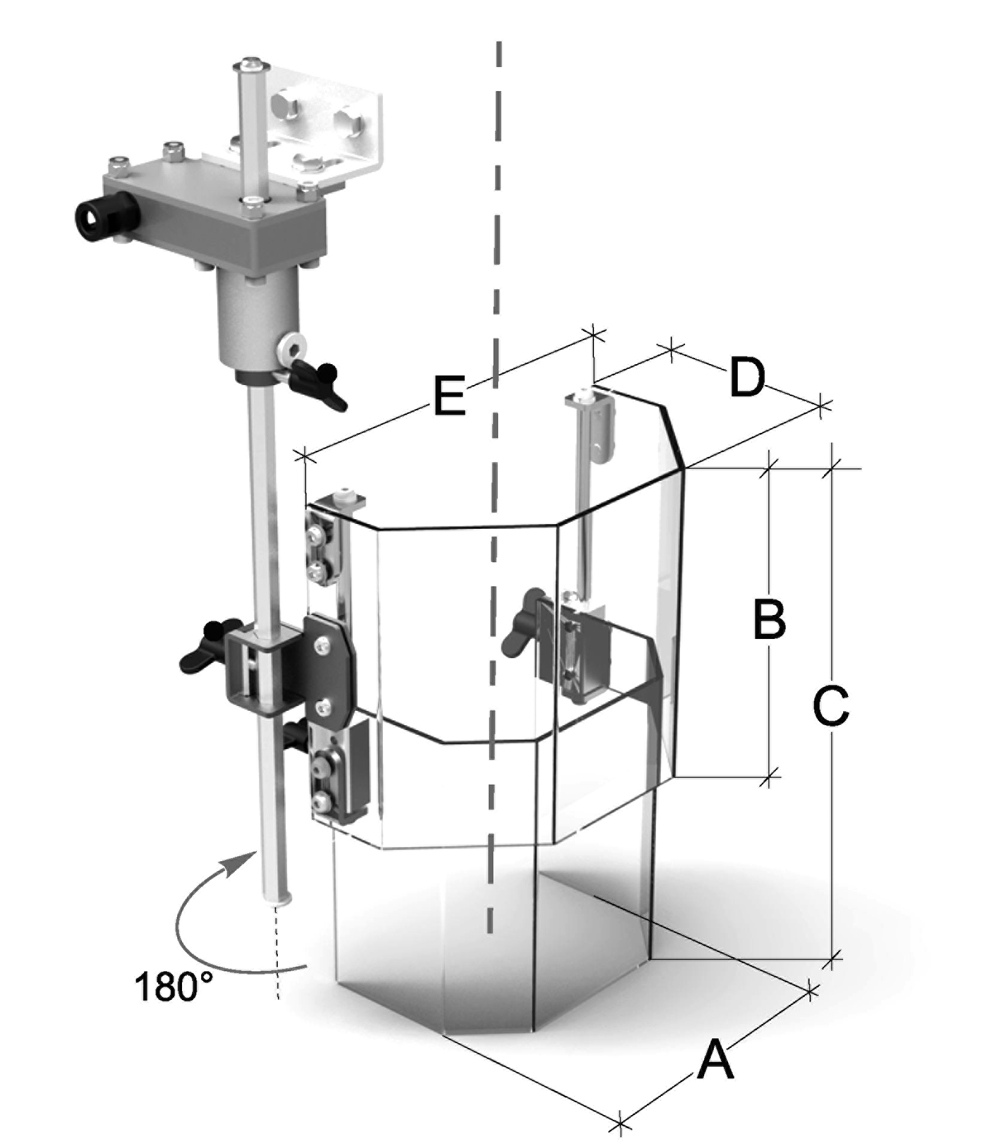

Telescopic safety guard for drilling machine - vertically adjustable - shield opens laterally (180°) - with safety micro-switch - protection against chips, lubricant and coolant
