Indexing fixtures, rotary tables and swivel angle plates

Adapter plate for Zentra rotary tables type 150 / 200 - suitable for:  ZE-RT-150 / 200

Adapter plate for Zentra rotary tables type 200 / 250 - suitable for:  ZE-RT-200 / 250

Adapter plate for Zentra rotary tables type 250 / 300 / 350 - suitable for:  ZE-RT-250 / 300 / 350

Adapter plate for Zentra rotary tables type 300 / 350 / 406 - suitable for:  ZE-RT-300 / 350 / 406

Centering arbor MT 2 for rotary table adapter plates - suitable for ZE-RT-150 / 200

Centering arbor MT 3 for rotary table adapter plates - suitable for ZE-RT-200 / 250

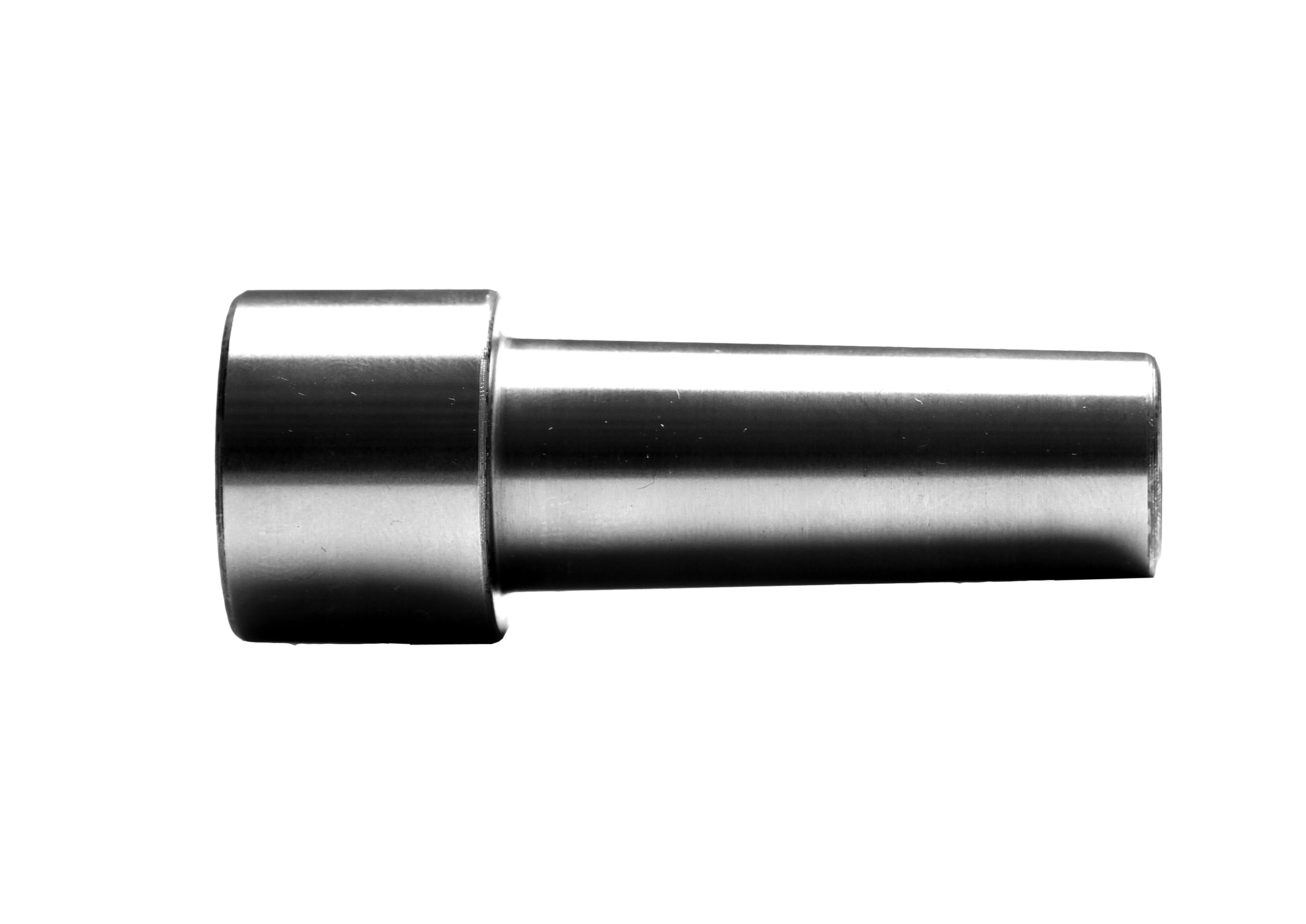

Centering arbor MT 4 for rotary table adapter plates - suitable for ZE-RT-300 / 350 / 406

Dividing plates for rotary tables,suitable for ZE-RT-110 / 150 Type / possible divisions A: 15, 16, 17, 18, 19, 20 B: 21, 23, 27, 29, 31, 33 C: 37, 39, 41, 43, 47, 49

Dividing plates for rotary tables,suitable for ZE-RT-200 Type / possible divisions D: 26, 28, 30,32, 34, 37, 38, 39, 41, 43, 44,    46, 47, 49, 51, 53, 57, 59 E: 61, 63, 67, 69, 71, 73, 77, 79, 81, 83, 87,    89, 91, 93, 97, 99

Dividing plates for rotary tables,suitable for ZE-RT-250 / 300 / 350 / 406 Type / possible divisions D: 26, 28, 30,32, 34, 37, 38, 39, 41, 43, 44,    46, 47, 49, 51, 53, 57, 59 E: 61, 63, 67, 69, 71, 73, 77, 79, 81, 83, 87,    89, 91, 93, 97, 99

Heavy-duty tilting plate 90°, type SSP-150 - used for mounting of different devices,  such as vices, lathe chucks, etc. - 156 x 150 mm - loading capacity: horizontal 30 kg / vertical 12 kg

Heavy-duty tilting plate 90°, type SSP-270 - used for mounting of different devices,  such as vices, lathe chucks, etc.- 270 x 258 mm- loading capacity: horizontal 45 kg / vertical 20 kg

Heavy-duty tilting plate 90°, type SSP-320 - used for mounting of different devices,  such as vices, lathe chucks, etc.- 320 x 298 mm- loading capacity: horizontal 70 kg / vertical 35 kg

Indexing fixture - 5C collets - for horizontal and vertical use- index can be selected and called up via repeater- direct indexing in 2, 3, 4, 6, 8, 12 and 24 pieces

Indexing fixture VUT200KPL incl. three-jaw lathe chuck - one-piece jaws- chuck-Ø: 200 mm- indexing fixture type: VUT2A  (universal diving head order no. ZE-VUT-2A)- incl. tailstock and 2 dividing plates

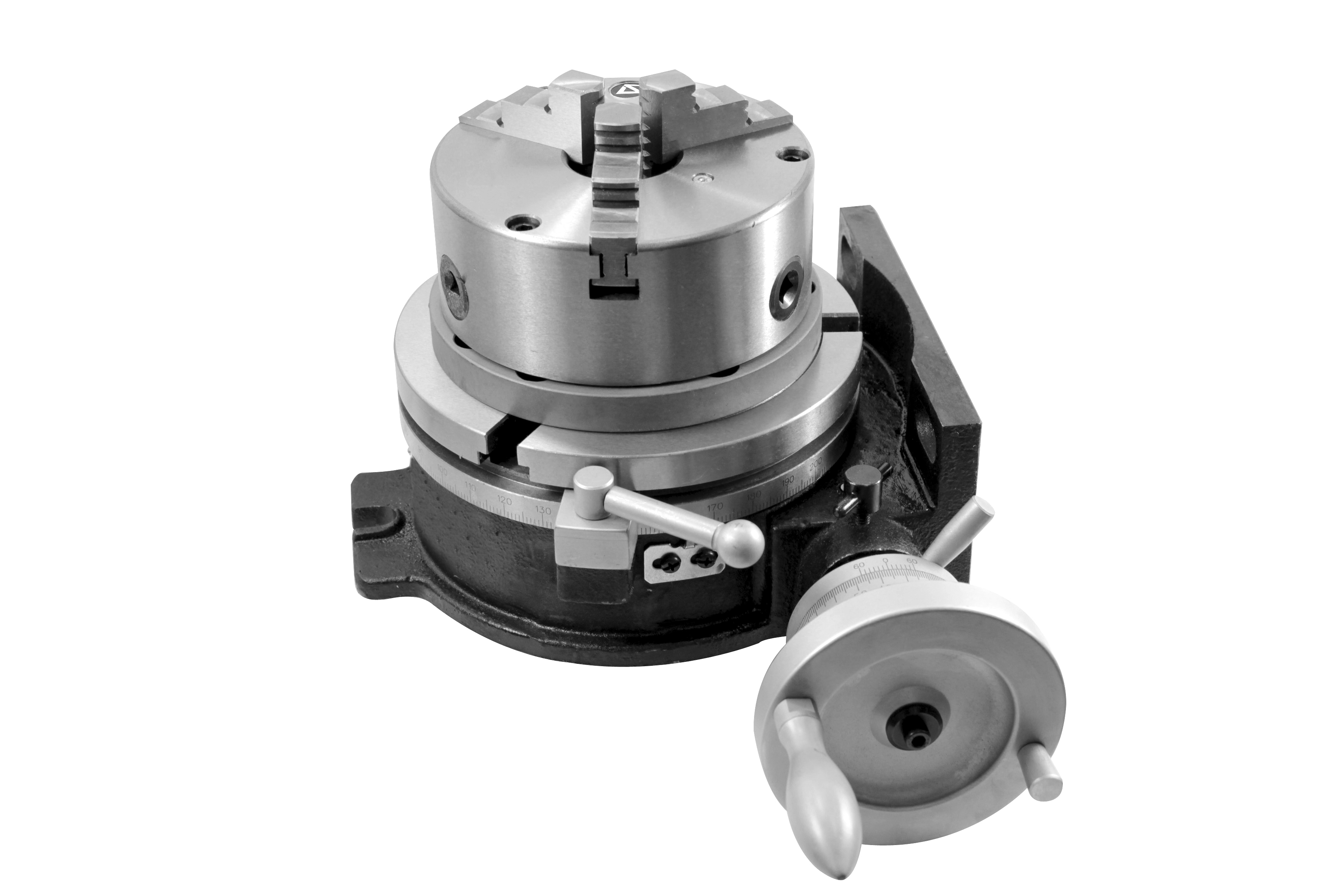

Precision rotary table type 110, MT 2 - for horizontal and vertical applications - ratio 90:1 - 360° graduation, 1' graduation, with vernier 10'',   feed 4° per rotation - parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

Precision rotary table type 150, MT 2 - for horizontal and vertical applications - ratio 90:1 - 360° graduation, 1' graduation, with vernier 10'',   feed 4° per rotation - parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

Precision rotary table type 200, MT 3 - for horizontal and vertical applications - ratio 90:1 - 360° graduation, 1' graduation, with vernier 10'',   feed 4° per rotation - parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

Precision rotary table type 250, MT 3 - for horizontal and vertical applications - ratio 90:1 - 360° graduation, 1' graduation, with vernier 10'',   feed 4° per rotation - parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

Precision rotary table type 300, MT 4 - for horizontal and vertical applications - ratio 90:1 - 360° graduation, 1' graduation, with vernier 10'',   feed 4° per rotation - parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

Precision rotary table type 350, MT 4 - for horizontal and vertical applications - ratio 90:1 - 360° graduation, 1' graduation, with vernier 10'',   feed 4° per rotation - parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

Precision rotary table type 406, MT 4 - for horizontal and vertical applications - ratio 90:1 - 360° graduation, 1' graduation, with vernier 10'',   feed 4° per rotation - parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

Reitstock Zentra RSV-200 für Rundtische und Teilapparate - höhenverstellbar - Passend zu:   ZE-TA-200, ZE-TAK-200, ZE-RT-250 / 300

Rotary table Bison 5859-160 - horizontal / vertical rotary table- due to the three dividing plates, division into the required  number of sections is obtained with an accuracy of 1’- dividing means of graduated drum with 1’30’’- centering morse taper sleeves are hardened and ground,  extending machine life- depending on the size gear ratio is 1:60- incl. 3 dividing plates with clamping bolts, slot nuts   and table lever - suitable tailstocks:  Bison type 5818-125  Bison type 5819-95-130

Rotary table Bison 5859-200 - horizontal / vertical rotary table- due to the three dividing plates, division into the required  number of sections is obtained with an accuracy of 1’- dividing means of graduated drum with 1’30’’- centering morse taper sleeves are hardened and ground,  extending machine life- depending on the size gear ratio is 1:60- incl. 3 dividing plates with clamping bolts, slot nuts   and table lever - suitable tailstock:  Bison type 5819-130-170

Rotary table Bison 5859-250 - horizontal / vertical rotary table- due to the three dividing plates, division into the required  number of sections is obtained with an accuracy of 1’- dividing means of graduated drum with 1’30’’- centering morse taper sleeves are hardened and ground,  extending machine life- depending on the size gear ratio is 1:90- incl. 3 dividing plates with clamping bolts, slot nuts   and table lever - suitable tailstock:  Bison type 5819-170-200

Rotary table Bison 5859-320 - horizontal / vertical rotary table- due to the three dividing plates, division into the required  number of sections is obtained with an accuracy of 1’- dividing means of graduated drum with 1’30’’- centering morse taper sleeves are hardened and ground,  extending machine life- depending on the size gear ratio is 1:90- incl. 3 dividing plates with clamping bolts, slot nuts   and table lever - suitable tailstocks:  Bison type 5818-200  Bison type 5819-170-200

Rotary table Bison 5859-400 - horizontal / vertical rotary table- due to the three dividing plates, division into the required  number of sections is obtained with an accuracy of 1’- dividing means of graduated drum with 1’30’’- centering morse taper sleeves are hardened and ground,  extending machine life- depending on the size gear ratio is 1:90- incl. 3 dividing plates with clamping bolts, slot nuts   and table lever - suitable tailstocks:  Bison type 5818-250  Bison type 5819-220-250

Rotary table Bison 5859-500 - horizontal / vertical rotary table- due to the three dividing plates, division into the required  number of sections is obtained with an accuracy of 1’- dividing means of graduated drum with 1’30’’- centering morse taper sleeves are hardened and ground,  extending machine life- depending on the size gear ratio is 1:120- incl. 3 dividing plates with clamping bolts, slot nuts   and table lever

Precision rotary table type UT2 Ø 250 mm, tiltable - rugged construction - ratio 1:120 - tilting range 90° - with 10" vernier - graduation 1‘
