Collet chuck SK30 ER 32, DIN 2080
Product number:
13-7616-30-32
Customs tariff number
8466 1038
European Article Number
4049794672709
Weight
0,6 kg
Stock:
0
Related links:
Request Item
Product information "Collet chuck SK30 ER 32, DIN 2080"
Collet chuck ER 32 SK30, DIN 2080
- SK 30
- ER 32
DIN: | 2080 |
---|---|
Size: | SK 30 |
Type: | Collet chucks |
for collets: | ER32 |

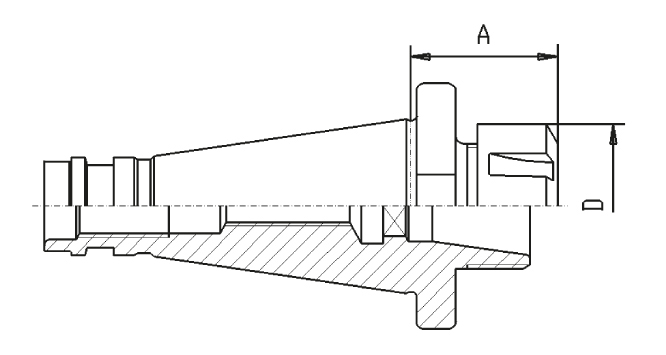

Technical Data
Größe / Size |
Spannzange / Collet |
A mm |
D mm |
SK 30 | ER 16 | 50 | 28 |
SK 30 | ER 32 | 50 | 42 |
SK 40 | ER 16 | 50 | 28 |
SK 40 | ER 25 | 50 | 42 |
SK 40 | ER 32 | 60 | 50 |
SK 40 | ER 40 | 60 | 63 |
SK 50 | ER 32 | 70 | 50 |
SK 50 | ER 40 | 70 | 63 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
