Collet chuck BT 40 ER 40, MAS BT
€32.76*
€38.98 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7626-40-40
Customs tariff number
8466 1038
European Article Number
4049794019665
Weight
1,5 kg
Stock:
8
Related links:
Request Item
Product information "Collet chuck BT 40 ER 40, MAS BT"
Collet chuck MAS BT40 ER40
- BT 40
- ER 40
| DIN: | MAS BT |
|---|---|
| Size: | BT 40 |
| Type: | Collet chucks |
| for collets: | ER40 |

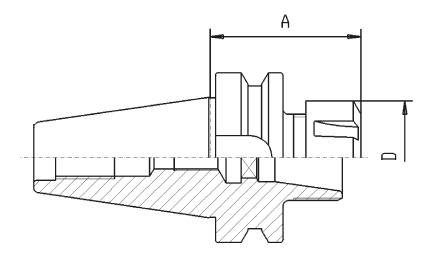

Technical Data
| Größe / Size |
Spannzange / Collet |
A mm |
D mm |
| BT 40 | ER 16 | 63 | 32 |
| BT 40 | ER 25 | 70 | 42 |
| BT 40 | ER 32 | 70 | 50 |
| BT 40 | ER 40 | 80 | 63 |
| BT 50 | ER 32 | 70 | 50 |
| BT 50 | ER 40 | 80 | 63 |
| Gewuchtet G = 6,3 15.000 U/min. | |||
| Balanced G = 6,3 15.000 U/min. | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
