Collet chuck ER20 cylindrical shank, D:25 / L:160
€58.82*
€70.00 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7812-25-20M-160
Customs tariff number
8466 1038
European Article Number
4049794071304
Weight
0,45 kg
Stock:
8
Related links:
Request Item
Product information "Collet chuck ER20 cylindrical shank, D:25 / L:160"
Collet chuck ER20 with cylindrical shank and mini nut
- D: 25 mm
- ER 20
- L: 160 mm
| DIN: | centre mount |
|---|---|
| Size: | cylindrical 25 mm |
| Type: | Collet chucks |
| for collets: | ER20 |

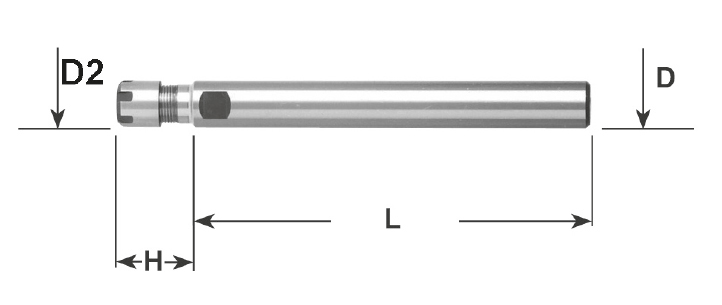

Technical Data
| D mm |
Spannzange / Collet |
L mm |
D2 mm |
H mm |
| 12 | ER 8 | 100 | 12 | 23 |
| 12 | ER 11 | 100 | 16 | 26 |
| 12 | ER 11 | 140 | 16 | 28 |
| 12 | ER 16 | 80 | 22 | 35 |
| 16 | ER 11 | 100 | 16 | 19 |
| 16 | ER 11 | 130 | 16 | 19 |
| 16 | ER 11 | 160 | 16 | 18 |
| 16 | ER 16 | 100 | 22 | 35 |
| 16 | ER 16 | 130 | 22 | 35 |
| 16 | ER 16 | 160 | 22 | 33 |
| 20 | ER 11 | 100 | 16 | 19 |
| 20 | ER 11 | 130 | 16 | 19 |
| 20 | ER 16 | 100 | 22 | 31 |
| 20 | ER 16 | 130 | 22 | 31 |
| 20 | ER 16 | 165 | 22 | 22 |
| 20 | ER 20 | 130 | 28 | 45 |
| 20 | ER 20 | 160 | 28 | 45 |
| 20 | ER 20 | 200 | 28 | 45 |
| 25 | ER 11 | 160 | 16 | 28 |
| 25 | ER 16 | 100 | 22 | 25 |
| 25 | ER 16 | 130 | 22 | 25 |
| 25 | ER 16 | 163 | 22 | 22 |
| 25 | ER 20 | 130 | 28 | 40 |
| 25 | ER 20 | 160 | 28 | 40 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
