Collet chuck ER 25 cylindrical shank, D:20 / L:160
€79.56*
€94.68 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7812-25-20-160
Customs tariff number
8466 1038
European Article Number
4049794069783
Weight
0,65 kg
Stock:
4
Related links:
Request Item
Product information "Collet chuck ER 25 cylindrical shank, D:20 / L:160"
Collet chuck ER 20 with cylindrical shank and standard nut
- D: 25 mm
- ER 20
- L: 160 mm
| DIN: | centre mount |
|---|---|
| Size: | cylindrical 25 mm |
| Type: | Collet chucks |
| for collets: | ER20 |

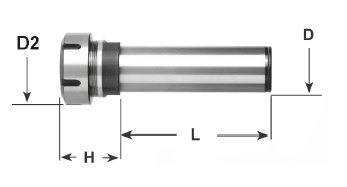

Technical Data
| D mm |
Spannzange / Collet |
L mm |
D2 mm |
H mm |
| 20 | ER 25 | 50 | 42 | 42 |
| 20 | ER 25 | 100 | 42 | 42 |
| 20 | ER 25 | 130 | 42 | 40 |
| 20 | ER 25 | 160 | 42 | 46 |
| 20 | ER 32 | 100 | 50 | 47 |
| 20 | ER 32 | 130 | 50 | 53 |
| 20 | ER 32 | 160 | 50 | 53 |
| 25 | ER 20 | 160 | 28 | 45 |
| 25 | ER 25 | 50 | 42 | 48 |
| 25 | ER 25 | 100 | 42 | 45 |
| 25 | ER 25 | 160 | 42 | 45 |
| 25 | ER 32 | 50 | 50 | 50 |
| 25 | ER 32 | 100 | 50 | 50 |
| 25 | ER 32 | 130 | 50 | 53 |
| 25 | ER 32 | 160 | 50 | 48 |
| 25 | ER 40 | 60 | 63 | 55 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
