Collet chuck SK50 OZ32, DIN 2080
€76.61*
€91.17 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7605-50-32
Customs tariff number
8466 1038
European Article Number
4049794656945
Weight
3,7 kg
Stock:
4
Related links:
Request Item
Product information "Collet chuck SK50 OZ32, DIN 2080"
Collet chuck OZ32 SK50, DIN 2080
- SK 50
- OZ32 (467E)
| DIN: | 2080 |
|---|---|
| Size: | SK 50 |
| Type: | Collet chucks |
| for collets: | OZ32 (467E) |

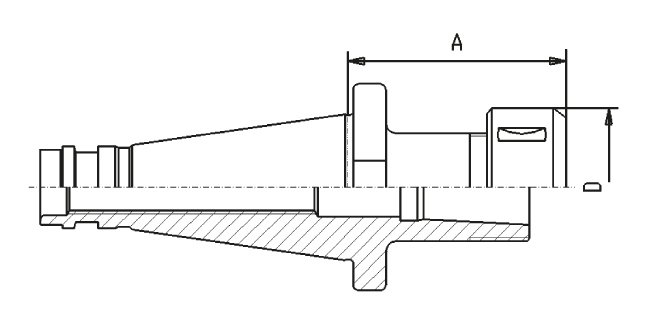

Technical Data
| Größe / Size |
Spannzange / Collet |
A mm |
D mm |
| SK 40 | OZ16 (415E) | 70 | 43 |
| SK 40 | OZ25 (462E) | 70 | 60 |
| SK 40 | OZ32 (467E) | 80 | 72 |
| SK 50 | OZ32 (467E) | 80 | 72 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
