Collet chuck SK40 OZ25, DIN 69871
€41.62*
€49.53 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7645-40-25
Customs tariff number
8466 1038
European Article Number
4049794018576
Weight
1,2 kg
Stock:
6
Related links:
Request Item
Product information "Collet chuck SK40 OZ25, DIN 69871"
Collet chuck DIN 69871 OZ25 SK40
- SK 40
- OZ25 (462E)
| DIN: | 69871 |
|---|---|
| Size: | SK 40 |
| Type: | Collet chucks |
| for collets: | OZ25 (462E) |

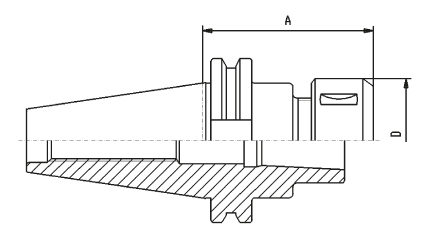

Technical Data
| Größe / Size |
Spannzange / Collet |
A mm |
D mm |
| SK 40 | OZ16 (415E) | 70 | 43 |
| SK 40 | OZ25 (462E) | 70 | 60 |
| SK 40 | OZ32 (467E) | 90 | 72 |
| SK 50 | OZ25 (462E) | 70 | 60 |
| SK 50 | OZ32 (467E) | 80 | 72 |
| Gewuchtet G = 6,3 15.000 U/min. | |||
| Balanced G = 6,3 15.000 U/min. | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
