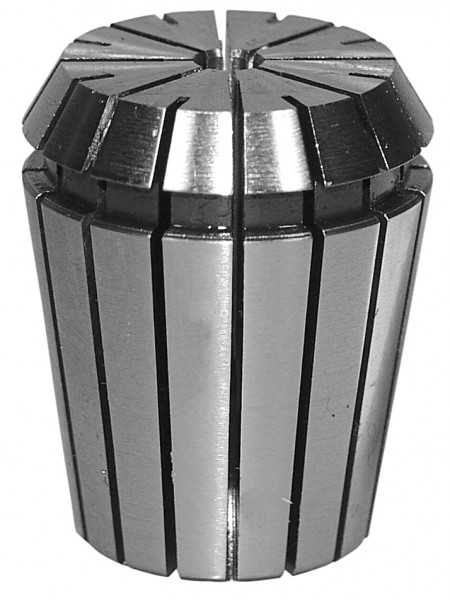

Collet ER/ESX, DIN 6499, ER 40 Ø 9 mm
Product number:
09-9040-9,0
Customs tariff number
8466 1020
European Article Number
4260073576567
Weight
0,3 kg
Stock:
14
Related links:
Request Item
Product information "Collet ER/ESX, DIN 6499, ER 40 Ø 9 mm"
Collet ER/ESX, DIN 6499
- ER 40 (472 E)
- 1 mm stepped
- Ø 9 mm
| Stepping: | 1 mm |
|---|---|
| Type: | ER 40 (472 E) |
| Ø : | 9 mm |

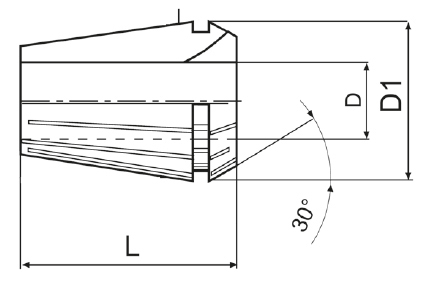

Technical Data
| D mm |
D1 mm |
L mm |
| 3,0 - 26,0 | 41 | 46 |
| 27,0 - 30,0 | 41 | 46 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
