Collet ER/ESX, DIN 6499, precision, ER 20 Ø 5 mm
Product number:
09-9020-5,0UP
Customs tariff number
8466 1020
European Article Number
4049794011331
Weight
0,04 kg
Stock:
9
Related links:
Request Item
Product information "Collet ER/ESX, DIN 6499, precision, ER 20 Ø 5 mm"
Collet ER/ESX, DIN 6499, precision design
- ER 20 (428 E)
- 1 mm stepped
- Ø 5 mm
Stepping: | 1 mm |
---|---|
Type: | ER 20 (428 E) |
Type: | precision |
Ø : | 5 mm |

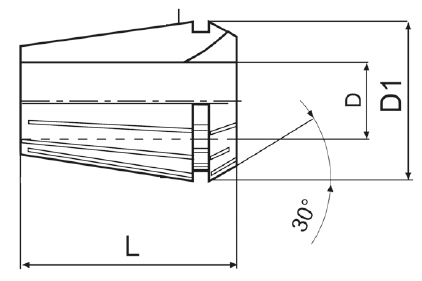

Technical Data
D mm |
D1 mm |
L mm |
1,0 - 2,0 | 21 | 31,5 |
3,0 - 13,0 | 21 | 31,5 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
D min. mm |
D max. mm |
Prüflänge | Rundlauf / Runout |
1 | 1,5 | 6 | 0,010 |
2 | 3 | 10 | 0,008 |
3,5 | 7 | 16 | 0,008 |
7,5 | 10 | 25 | 0,008 |
10,5 | 18 | 40 | 0,010 |
18,5 | 26 | 50 | 0,010 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
