Tapping collet with internal square ER 16 Ø 7,0 mm
Product number:
09-8016-7,0
Customs tariff number
8466 1020
European Article Number
4260073576802
Weight
0,03 kg
Stock:
0
Related links:
Request Item
Product information "Tapping collet with internal square ER 16 Ø 7,0 mm"
Tapping collet with internal square ER16 Ø 7,0 mm
- ER 16-GB
- D x ❑ (mm): 7 x 5,5
| Type: | ER 16-GB |
|---|---|
| Type: | with internal square |
| Ø : | 7 x 5,5 mm |

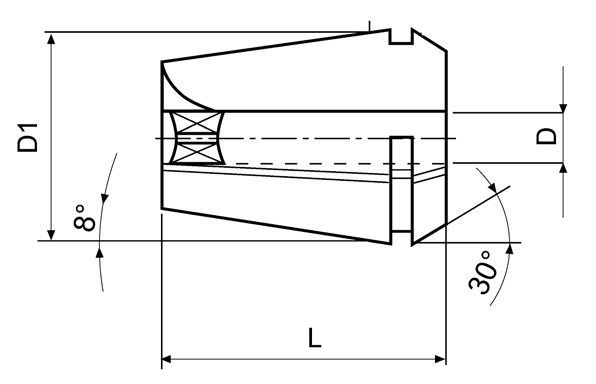

Technical Data
| D x ❑ mm |
D1 mm |
L mm |
| 3,5 x 2,7 | 16 | 27,5 |
| 4 x 3 | 16 | 27,5 |
| 4,5 x 3,4 | 16 | 27,5 |
| 5 x 4,3 | 16 | 27,5 |
| 5,5 x 4,3 | 16 | 27,5 |
| 6 x 4,9 | 16 | 27,5 |
| 7 x 5,5 | 16 | 27,5 |
| 8 x 6,2 | 16 | 27,5 |
| 9 x 7 | 16 | 27,5 |
| 10 x 8 | 16 | 27,5 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
