Tapping collet ER 40 Ø 16 mm, length compensation
€117.07*
€139.31 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
09-6040-16,0
Customs tariff number
8466 1020
European Article Number
4049794061411
Weight
0,25 kg
Stock:
2
Related links:
Request Item
Product information "Tapping collet ER 40 Ø 16 mm, length compensation"

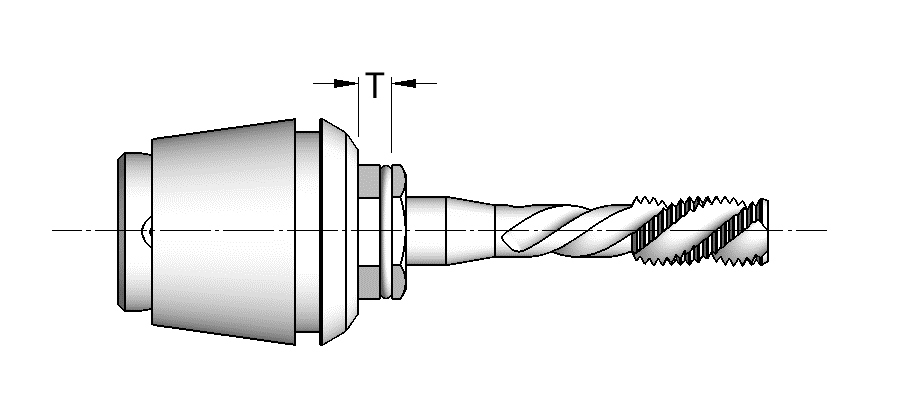

Tapping collet with length compensation
- collet ER 40
- Ø 16,0 mm
| Type: | with length compensation |
|---|---|
| Type: | ER 40 |
| Ø : | 16 mm |
Technical Data
| Spannzange / Collet |
Spann-Ø / Clamping-Ø mm |
D mm |
L mm |
T mm |
| ER 16 | Ø 2,5 - Ø 6,0 | 17 | 27 | 7 |
| ER 20 | Ø 2,8 - Ø 7,0 | 21 | 31 | 7 |
| ER 25 | Ø 2,5 - Ø 10,0 | 26 | 34 | 8 |
| ER 32 | Ø 4,5 - Ø 12,0 | 33 | 43 | 10 |
| ER 40 | Ø 6,0 - Ø 16,0 | 41 | 54 | 13 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
| Spannzange / Collet |
Standard-Ø / Standard- mm |
|||
| ER 16 | 2,5 / 2,8 / 3,5 / 4,5 / 6,0 | |||
| ER 20 | 2,8 / 3,5 / 4,5 / 6,0 / 7,0 | |||
| ER 25 | 2,5 / 2,8 / 3,5 / 4,5 / 6,0 / 7,0 / 8,0 / 9,0 / 10,0 | |||
| ER 32 | 4,5 / 6,0 / 7,0 / 8,0 / 9,0 / 10,0 / 11,0 / 12,0 | |||
| ER 40 | 6,0 / 7,0 / 8,0 / 9,0 / 10,0 / 11,0 / 12,0 / 14,0 / 16,0 | |||
| Andere Abmessungen lieferbar auf Anfrage / Further dimensions available upon request |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
