Stationary cross table KT2 precision, 700 x 180 mm
€562.75*
€669.67 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
BAS-KT2-700UP
Customs tariff number
8466 3000
European Article Number
4049794683750
Weight
60 kg
Stock:
4
Related links:
Request Item
Product information "Stationary cross table KT2 precision, 700 x 180 mm"
Stationary cross table BASIC type KT2-700, precision type
- with 2 axes
- 700 x 180 mm
- max. workpiece weight: 50 kg
- accuracy: 0,03 mm
- with dovetail grooves

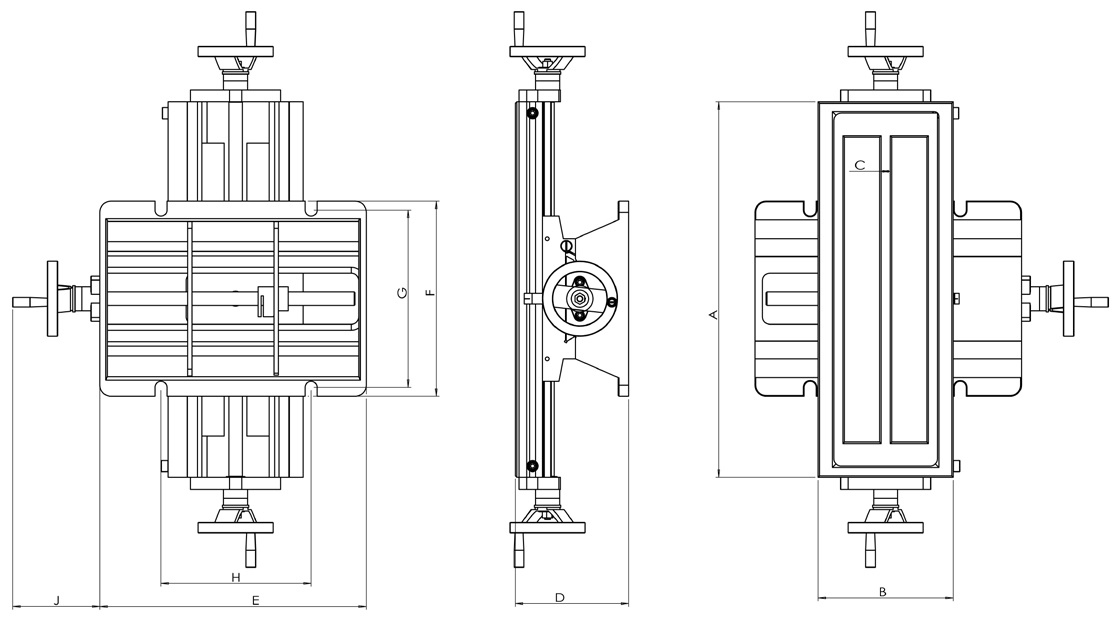

Technical Data
| X-Verfahrweg mm / X-Travel mm |
Y-Verfahrweg mm / Y-Travel mm |
Max. Werkstückgewicht kg / Max. workpiece weight kg |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
J mm |
| 220 | 160 | 30 | 400 | 120 | 10 | 145 | 282 | 222 | 200 | 16 | 110 |
| 280 | 175 | 50 | 500 | 180 | 12 | 151 | 355 | 260 | 235 | 200 | 116 |
| 480 | 175 | 50 | 700 | 180 | 12 | 151 | 355 | 260 | 235 | 200 | 116 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
