Stationary cross table KT2 rotatable, 425 x 240 mm
€491.62*
€585.03 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
BAS-KT2-425DP
Customs tariff number
8466 3000
European Article Number
4049794683729
Weight
53 kg
Stock:
1
Related links:
Request Item
Product information "Stationary cross table KT2 rotatable, 425 x 240 mm"
Stationary cross table BASIC type KT2-425, rotatable
- with 2 axes
- with swivel base
- 425 x 240 mm
- max. workpiece weight: 80 kg
- accuracy: 0,05 mm
- with coolant channel

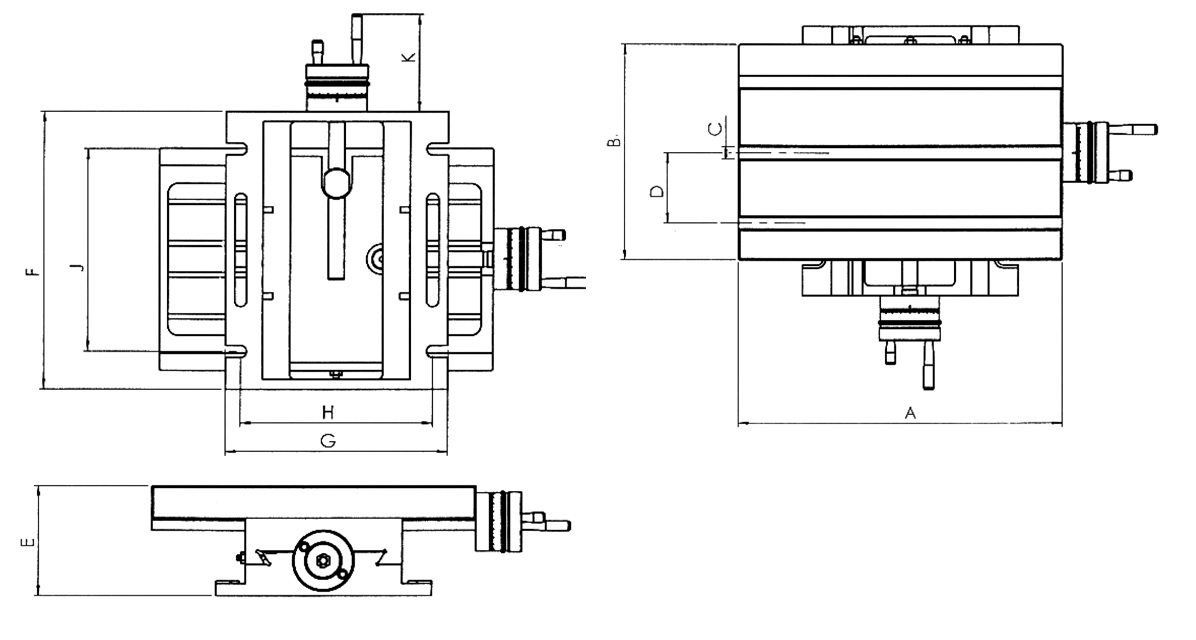

Technical Data
| X-Verfahrweg mm / X-Travel mm |
Y-Verfahrweg mm / Y-Travel mm |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
J mm |
K mm |
| 105 | 90 | 225 | 175 | 12 | 72 | 138 | 175 | 232 | 195 | - | 96 |
| 190 * | 100 | 330 | 220 | 12 | 72 | 155 | 280 | 260 | 220 | 200 | 96 |
| 225 ** | 150 | 425 | 240 | 12 | 72 | 165 | 335 | 340 | 250 | 250 | 123 |
| * mit Spindelabdeckung / with spindle cover | |||||||||||
| ** mit Kühlmittelrinne / with coolant channel | |||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
