Stationary cross table KT2, 330 x 220 mm
Product number:
BAS-KT2-330
Customs tariff number
8466 3000
European Article Number
4049794683682
Weight
26 kg
Stock:
0
Related links:
Request Item
Product information "Stationary cross table KT2, 330 x 220 mm"
Stationary cross table BASIC type KT2-330
- with 2 axes
- 330 x 220 mm
- max. workpiece weight: 80 kg
- accuracy: 0,05 mm

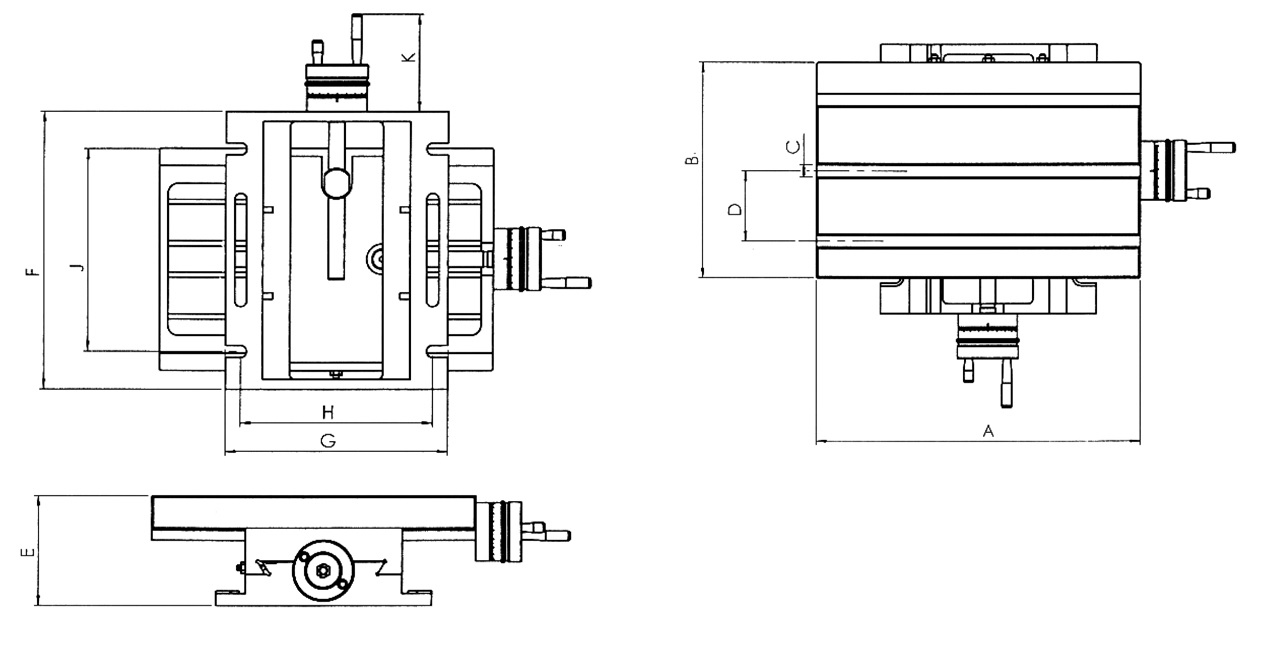

Technical Data
| X-Verfahrweg mm / X-Travel mm |
Y-Verfahrweg mm / Y-Travel mm |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
J mm |
K mm |
| 80 | 50 | 185 | 100 | 10 | 35 | 102 | 170 | 130 | 115 | 100 | 96 |
| 105 | 90 | 225 | 175 | 12 | 72 | 108 | 225 | 175 | 148 | 160 | 96 |
| 190 | 100 | 330 | 220 | 12 | 72 | 115 | 275 | 220 | 190 | 275 | 96 |
| 225 * | 150 | 425 | 240 | 12 | 72 | 125 | 335 | 276 | 240 | 245 | 144 |
| * mit Spindelabdeckung und Kühlmittelrinne / with spindle cover and coolant channel | |||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||
