Driven tool VDI 40 ER 32, with IC
Product number:
47-80-WR-40-32IK
Customs tariff number
8466 1031
European Article Number
4049794057896
Weight
6 kg
Stock:
0
Related links:
Request Item
Product information "Driven tool VDI 40 ER 32, with IC"

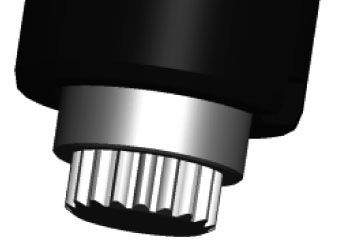

Driven tool, DIN 5480, angular 90°
- for SAUTER turrets
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds
- VDI 40
- ER 32
- with internal cooling
| Collet: | ER 32 |
|---|---|
| For turret: | Sauter DIN 5480 |
| Internal cooling: | with |
| Type: | angular 90° |
| VDI: | 40 |

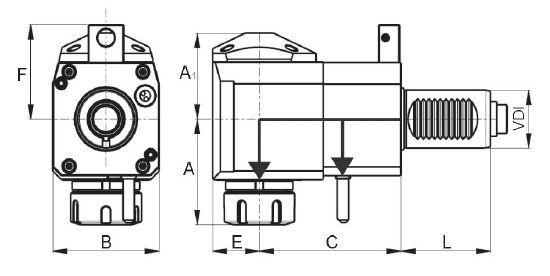

Technical Data
| VDI | SZ / Collet |
IK / IC |
Richtung / Direction |
C mm |
A1 mm |
A mm |
L mm |
F mm |
E mm |
B mm |
Übersetzung / Ratio |
Max. Drehmoment / Max. torque Nm |
Drehzahl / Speed min-1 |
| 30 | ER 25 | - | rechts/right | 55 | 48 | 63 | 55 | 56 | 26 | 64 | 1 : 1 | 28 | 6000 |
| 30 | ER 25 | ✓ | rechts/right | 55 | 51 | 63 | 55 | 56 | 26 | 64 | 1 : 1 | 28 | 6000 |
| 30 | ER 25 | - | rechts/right | 85 | 48 | 63 | 55 | 56 | 26 | 64 | 1 : 1 | 28 | 6000 |
| 30 | ER 25 | ✓ | rechts/right | 85 | 51 | 63 | 55 | 56 | 26 | 64 | 1 : 1 | 28 | 6000 |
| 40 | ER 32 | - | rechts/right | 80 | 59 | 74 | 63 | 65 | 33 | 75 | 1 : 1 | 50 | 6000 |
| 40 | ER 32 | ✓ | rechts/right | 80 | 62 | 74 | 63 | 65 | 33 | 75 | 1 : 1 | 50 | 6000 |
| 40 | ER 32 | - | rechts/right | 100 | 59 | 74 | 63 | 65 | 33 | 75 | 1 : 1 | 50 | 6000 |
| 40 | ER 32 | ✓ | rechts/right | 100 | 62 | 74 | 63 | 65 | 33 | 75 | 1 : 1 | 50 | 6000 |
| Angetriebene Werkzeuge mit VDI 50 auf Anfrage lieferbar / Driven tools with VDI 50 available on request |
|||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
