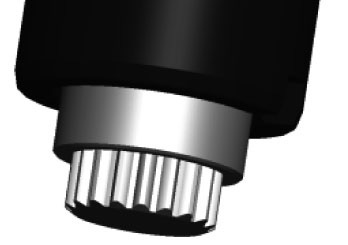

Driven tool DIN 5480, VDI 40 ER 25, without IC
Product number:
47-80-G-40-25
Customs tariff number
8466 1031
European Article Number
4049794660669
Weight
4,1 kg
Stock:
0
Related links:
Request Item
Product information "Driven tool DIN 5480, VDI 40 ER 25, without IC"
Driven tool, DIN 5480, straight
- for SAUTER turrets
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds
- VDI 40
- ER 25
- without internal cooling
| Collet: | ER 25 |
|---|---|
| For turret: | Sauter DIN 5480 |
| Internal cooling: | without |
| Type: | straight |
| VDI: | 40 |

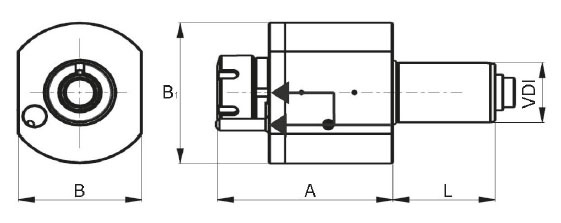

Technical Data
| VDI | SZ / Collet |
IK / IC |
A mm |
L mm |
B mm |
B1 mm |
Übersetzung / Ratio |
Max. Drehmoment / Max. torque Nm |
Drehzahl / Speed min-1 |
| 30 | ER 25 | - | 87 | 55 | 62 | 69 | 1 : 1 | 28 | 6000 |
| 30 | ER 25 | ✓ | 87 | 55 | 62 | 69 | 1 : 1 | 28 | 6000 |
| 40 | ER 25 | - | 120 | 63 | 76 | 94 | 1 : 1 | 50 | 6000 |
| 40 | ER 25 | ✓ | 120 | 63 | 76 | 94 | 1 : 1 | 50 | 6000 |
| 40 | ER 32 | - | 120 | 63 | 76 | 94 | 1 : 1 | 50 | 6000 |
| 40 | ER 32 | ✓ | 120 | 63 | 76 | 94 | 1 : 1 | 50 | 6000 |
| Angetriebene Werkzeuge mit VDI 50 auf Anfrage lieferbar / Driven tools with VDI 50 available on request |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
