Driven tool HAAS VDI 40, without IC
Product number:
47-ST-G-40-32
Customs tariff number
8466 1031
European Article Number
4049794682593
Weight
4,05 kg
Stock:
0
Related links:
Request Item
Product information "Driven tool HAAS VDI 40, without IC"

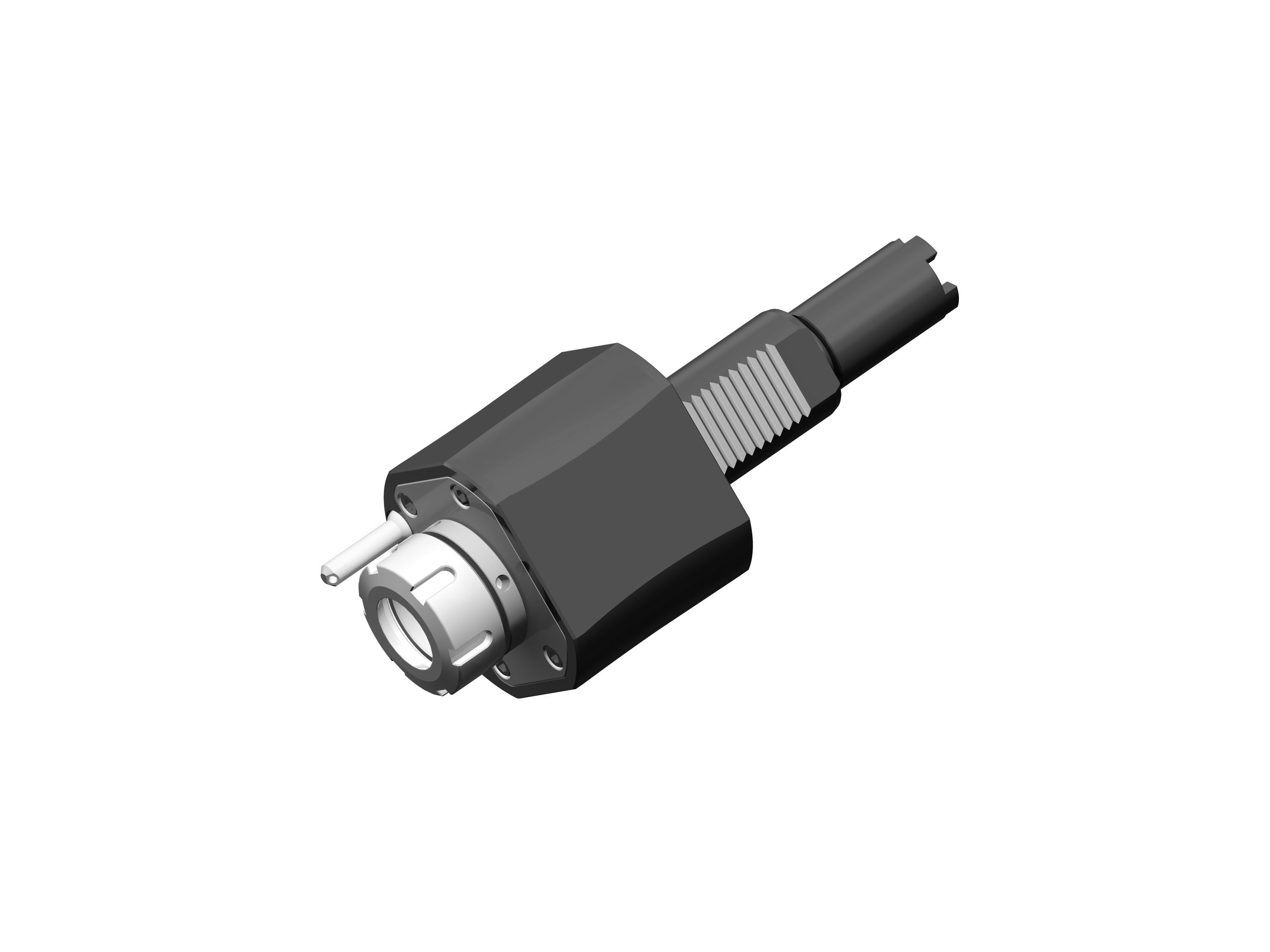

Driven tool VDI 40 for HAAS turrets, straight, without IC
- collet ER 32
- without internal cooling
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds
| Collet: | ER 32 |
|---|---|
| For turret: | Haas |
| Internal cooling: | without |
| Type: | straight |
| VDI: | 40 |

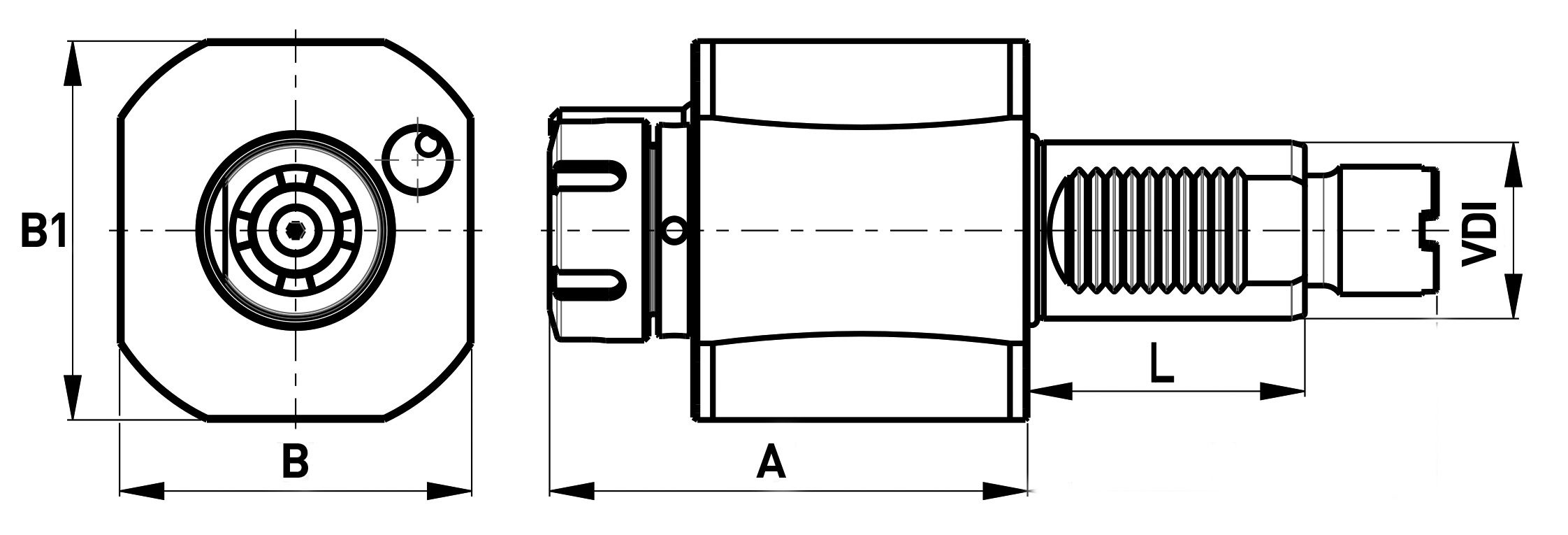

Technical Data
| VDI | SZ / Collet |
IK IC |
A mm |
L mm |
B mm |
B1 mm |
Übersetzung / Ratio |
Max. Drehmoment / Max. torque Nm |
Drehzahl / Speed min-1 |
| 40 | ER 32 | - | 109 | 64 | 80 | 86 | 1 : 1 | 50 | 6000 |
| 40 | ER 32 | ✓ | 109 | 64 | 80 | 86 | 1 : 1 | 50 | 6000 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
