Collet chuck HSK-A 63, ER 40-160
€79.06*
€94.08 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
17-SF63A-ER40-160
Customs tariff number
8466 1038
European Article Number
4049794033777
Weight
2,2 kg
Stock:
3
Related links:
Request Item
Product information "Collet chuck HSK-A 63, ER 40-160"
Collet chuck ER, DIN 69893 HSK-A
- HSK 63A
- balanced G = 6,3 25.000 U/min.
- for collet: ER40 (clamping range 3-26 mm)
- A: 160 mm
| Size: | HSK-A 63 |
|---|---|
| Type: | Collet chucks |
| for collets: | ER40 |

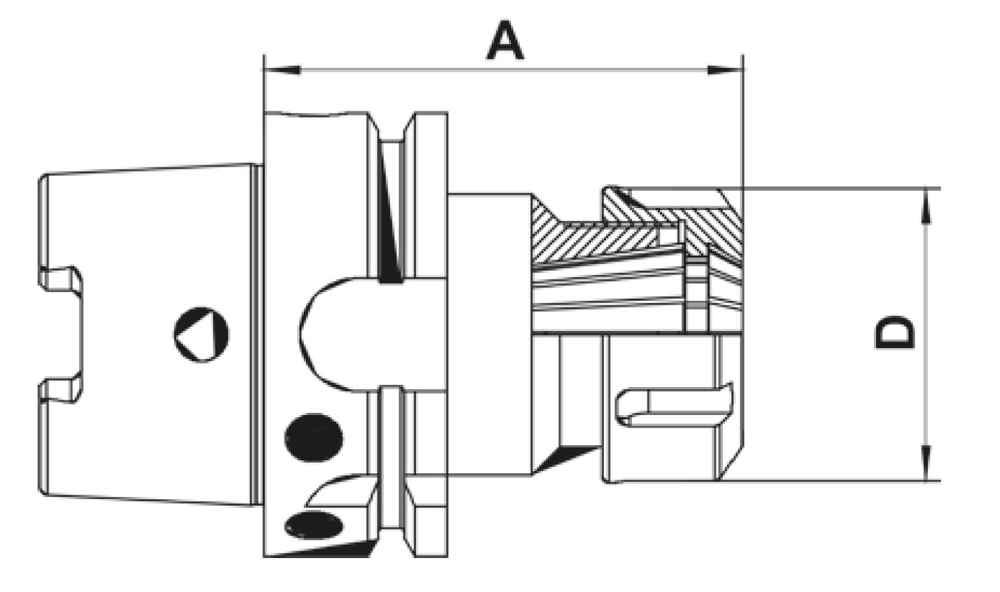

Technical Data
| Größe / Size |
Für Spannzange / For collet |
D mm |
A mm |
| HSK-A 63 | ER16 (1-10) | 28 | 100 |
| HSK-A 63 | ER16 (1-10) | 28 | 160 |
| HSK-A 63 | ER 25 (2-16) | 42 | 100 |
| HSK-A 63 | ER 25 (2-16) | 42 | 160 |
| HSK-A 63 | ER 32 (2-20) | 50 | 100 |
| HSK-A 63 | ER 32 (2-20) | 50 | 160 |
| HSK-A 63 | ER40 (3-26) | 63 | 120 |
| HSK-A 63 | ER40 (3-26) | 63 | 160 |
| Gewuchtet G 6,3 25.000 U/min. / Balanced G 6,3 25.000 U/min. |
|||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
